SpeedyBee Mario 5 DC / XH Pro 5Inch Frame Kit with 3D Printing Parts for DIY Freestyle RC Drone FPV Racing
Product Description
Notice:

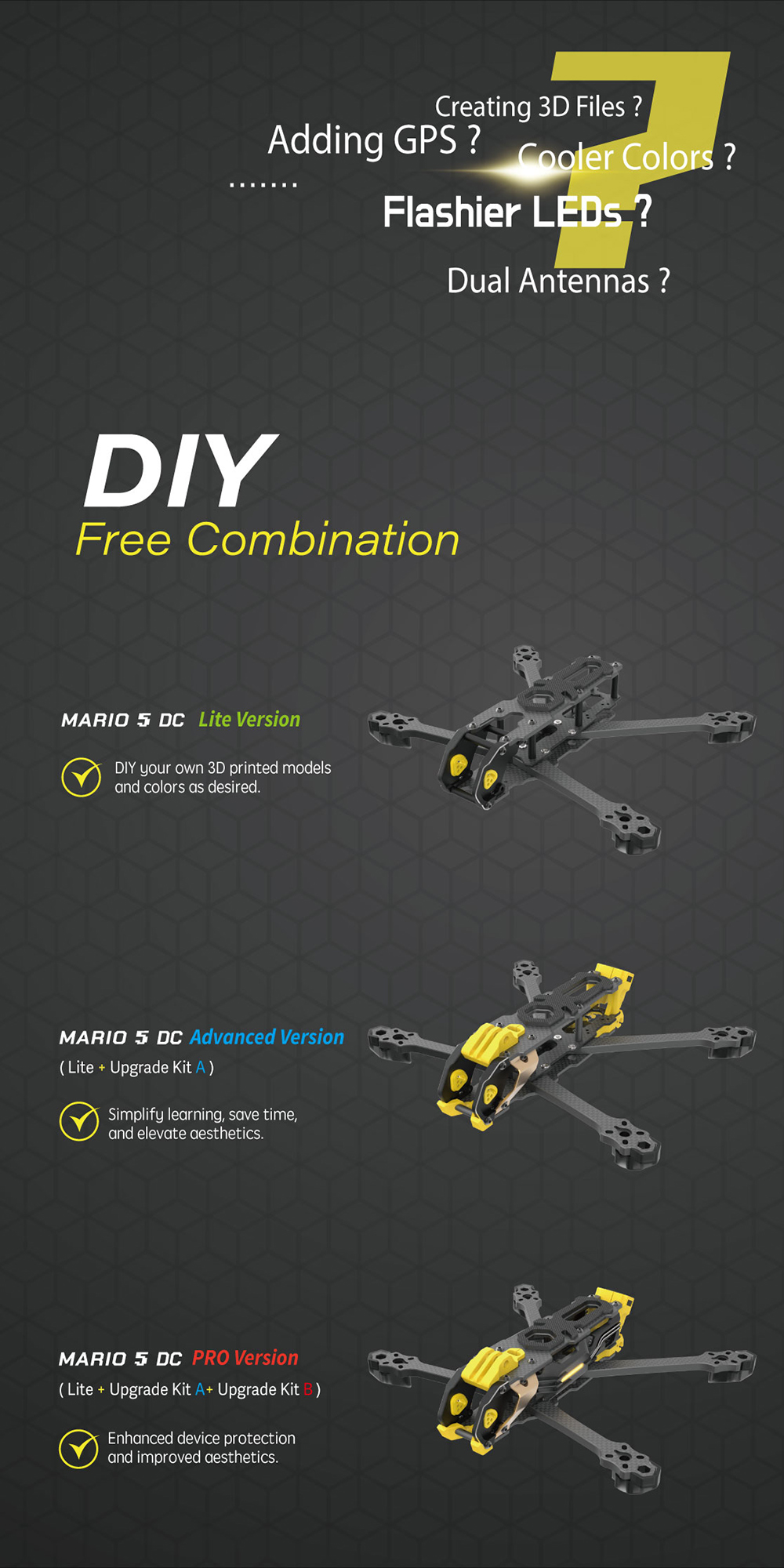

Diffirence between Pro Verion / Lite Version and Advanced Version
Advance Version = Lite Version + KIT A
Pro Version = Lite Version + KIT A + KIT B
( Click here buy Lite / Advanced Version)
Specifications:
Brand: SpeedyBee
Model: Mario 5 DC Pro / XH Pro

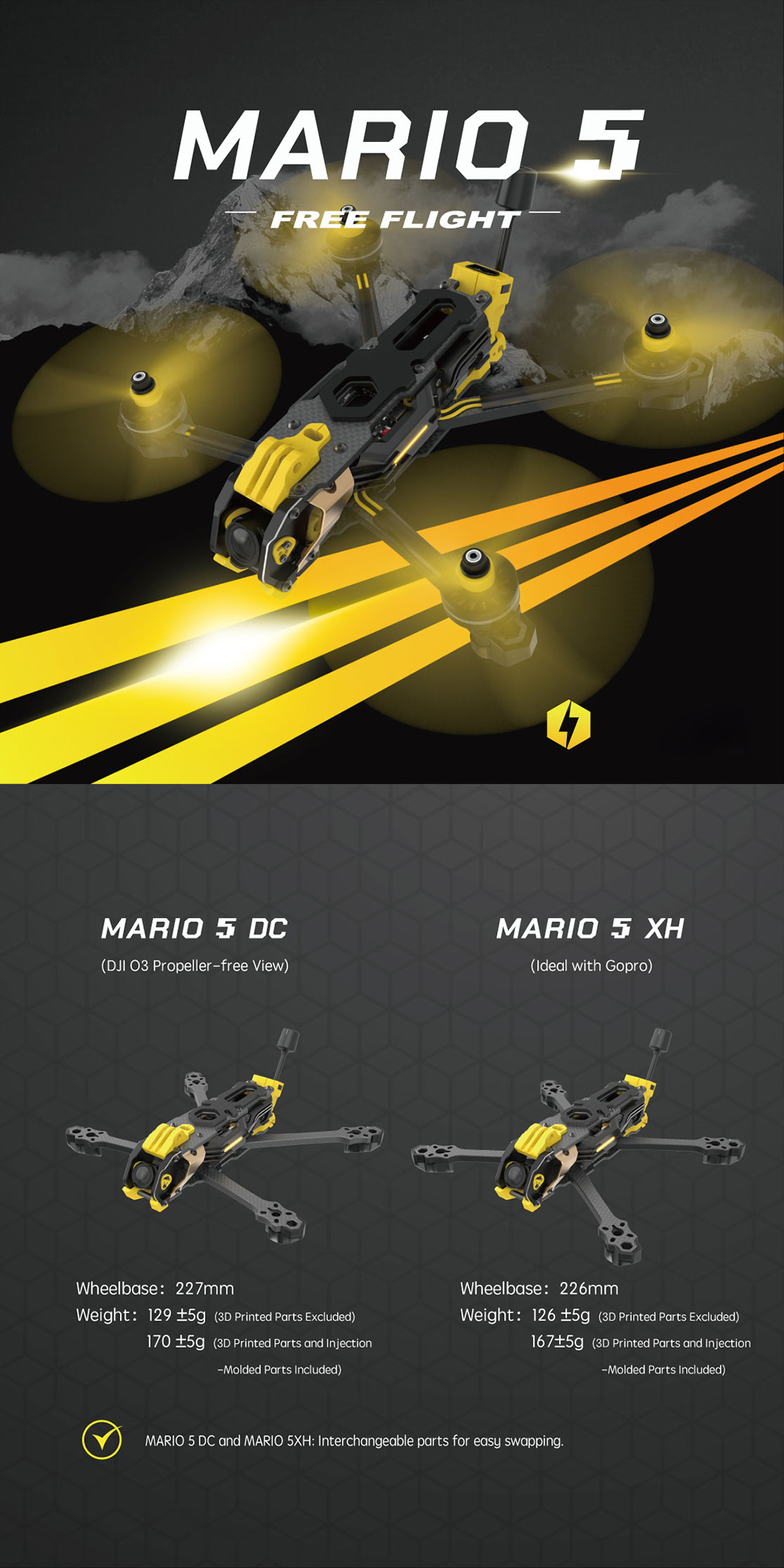

Model | SpeedyBee Mario 5 Frame |
Mario 5 DC Pro Wheelbase | 227mm |
Mario 5 DC Pro Weight | 129 ±5g (3D Printed Parts Excluded) |
170 ±5g (3D Printed Parts and Injection) | |
Mario 5 XH Pro Wheelbase | 226mm |
Mario 5 XH Pro Weight | 126 ±5g (3D Printed Parts Excluded) |
167±5g (3D Printed Parts and Injection) | |

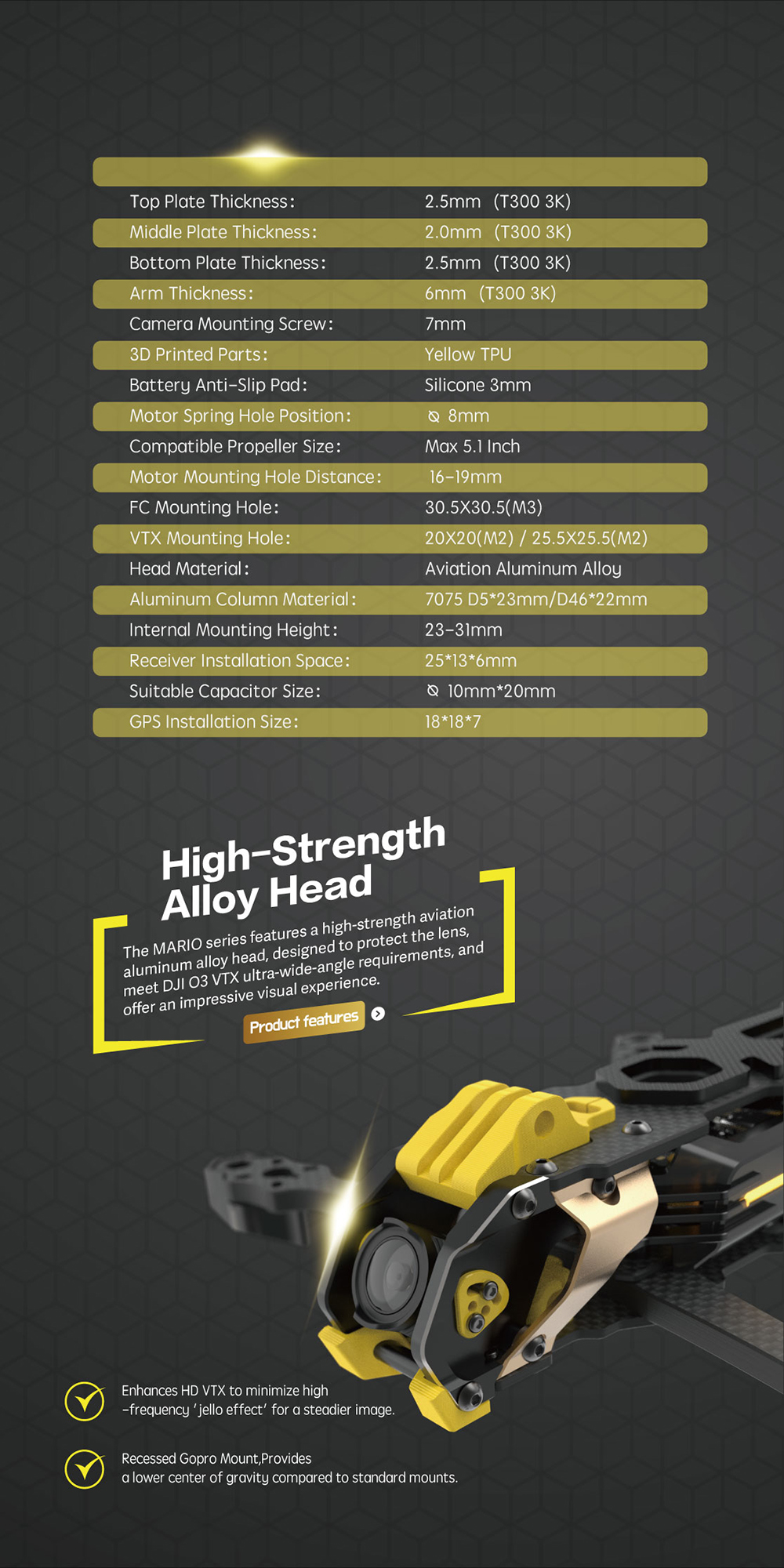

Top Plate Thickness | 2.5mm(T300 3K) |
Middle Plate Thickness | 2.0mm(T300 3K) |
Bottom Plate Thickness | 2.5mm(T300 3K) |
Arm Thickness | 6mm(T300 3K) |
Camera Mounting Screw | 7mm |
3D Printed Parts | Yellow TPU |
Battery Anti-Slip Pad | Silicone 3mm |
Motor Spring Hole Position | Φ8mm |
Compatible Propeller Size | Max 5.1 Inch |
Motor Mounting Hole Distance | 16-19mm |
FC Mounting Hole | 30.5x30.5(M3) |
VTX Mounting Hole | 20x20(M2) / 25.5x25.5(M2) |
Head Material | Aviation Aluminum Alloy |
Aluminum Column Material | 7075 D5*23mm/D46*22mm |
Internal Mounting Height | 23-31mm |

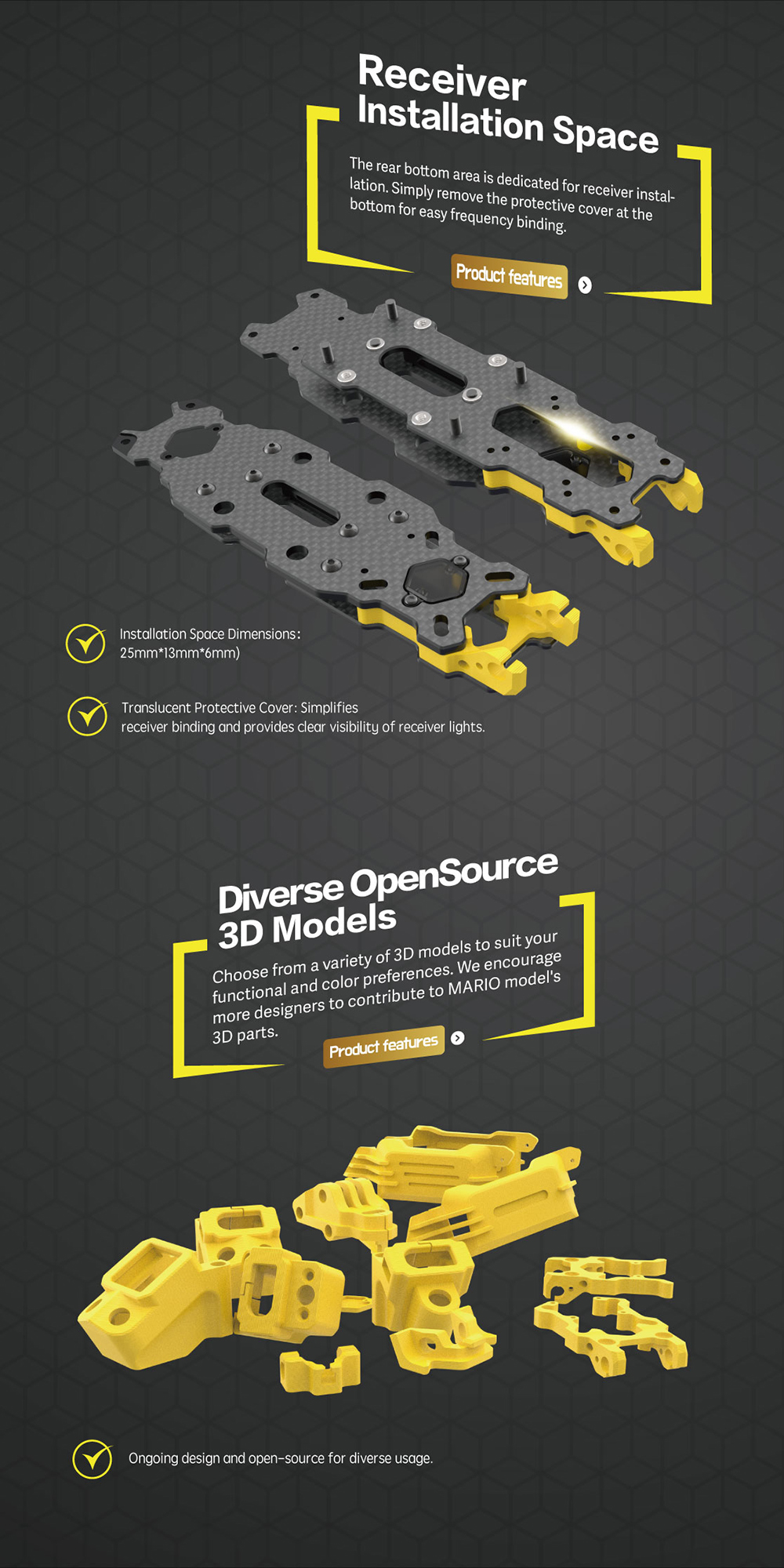

Receiver Installation Space | 25*13*6mm |

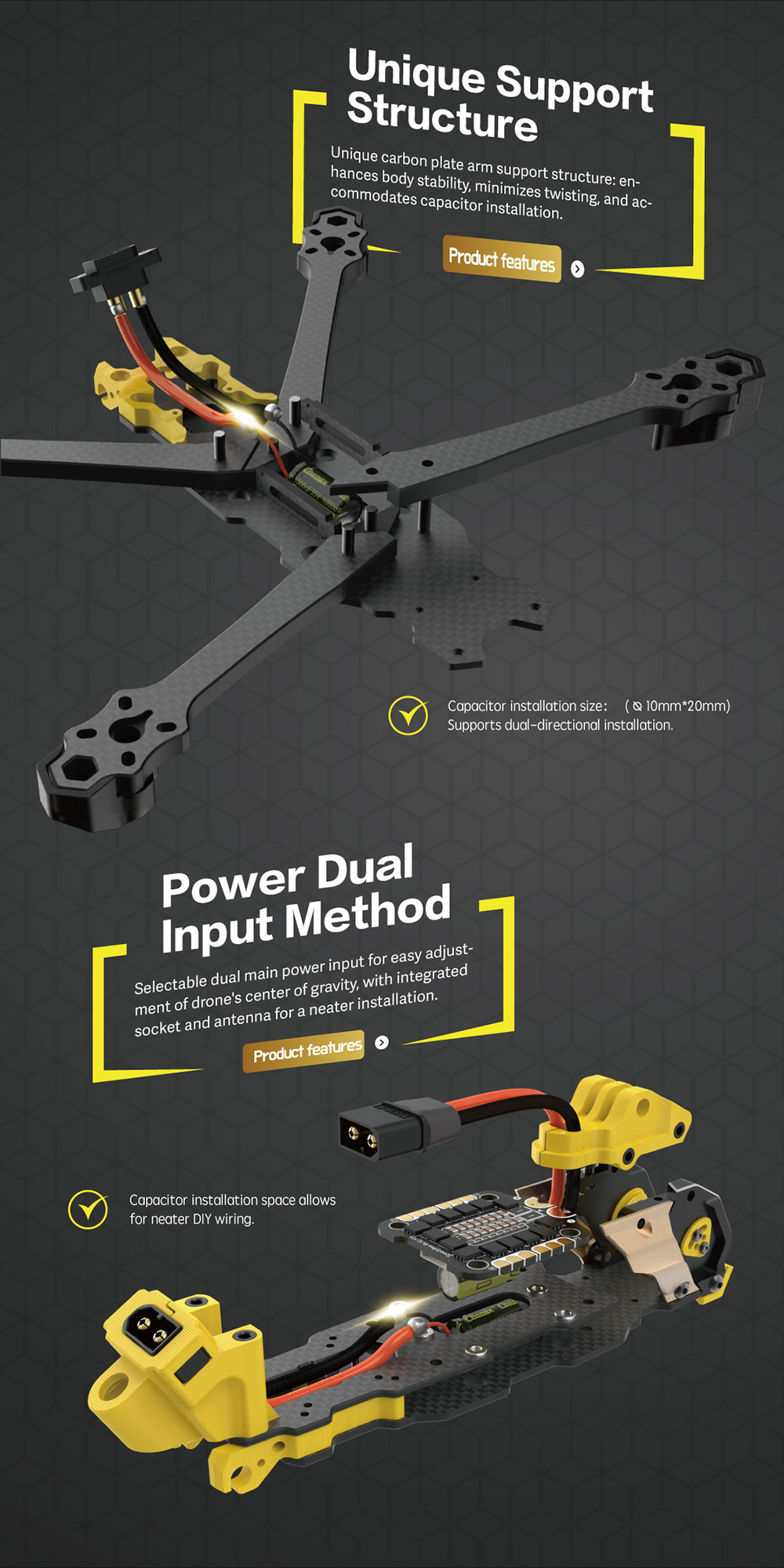

Suitable Capacitor Size | Φ10mm*20mm |
GPS Installation Size | 18*18*7 |
Package Included:

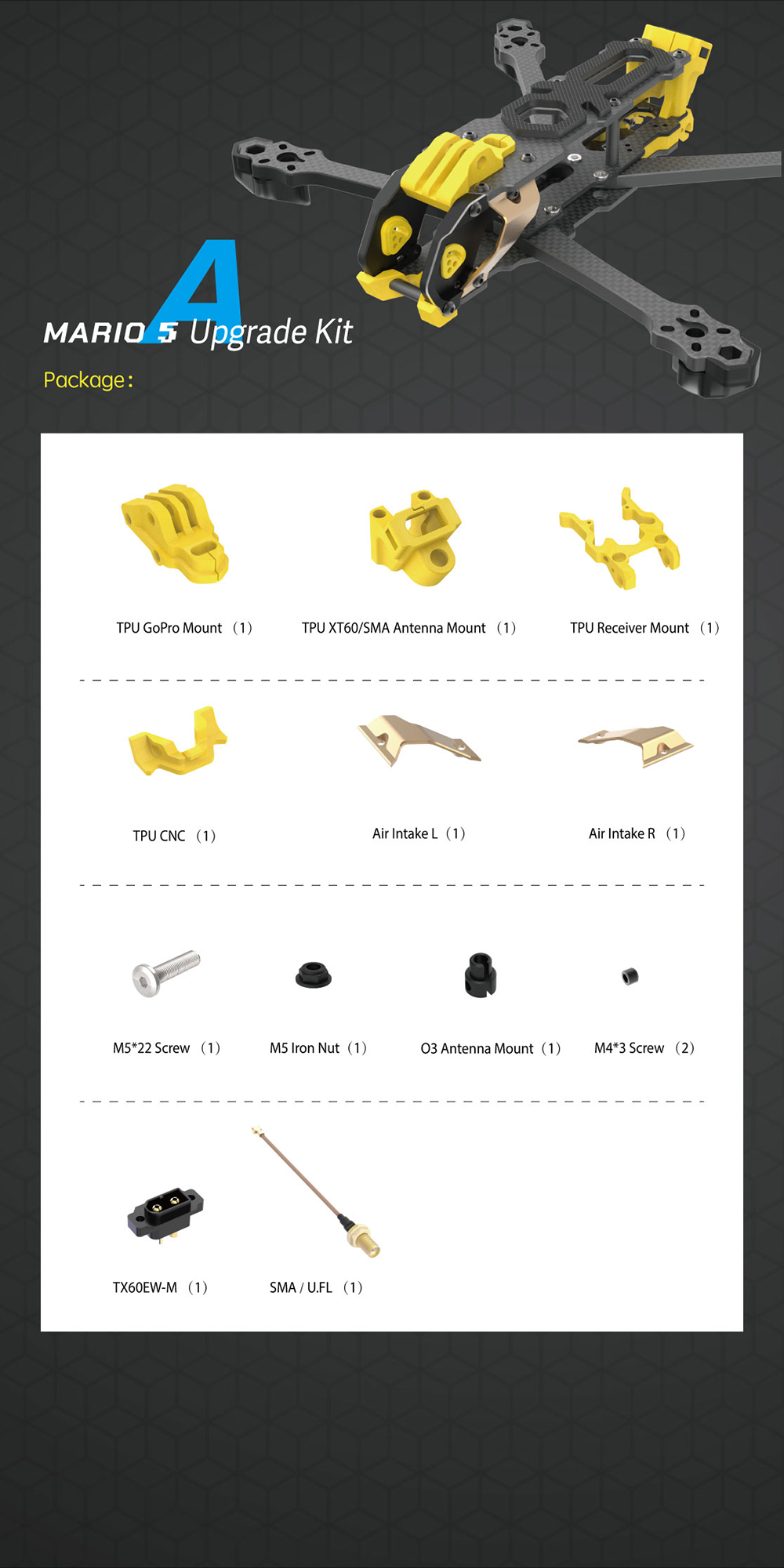

| Upgrade Kit A Version | 1X TPU Mount for 1X TPU XT60/SMA Ante- nna Mount 1X TPU Receiver Mount 1X Air Intake L 1X Air Intake R 1X TX60EW-M 1X SMA /U.FL 1X M5*22 Screw 1X M5 Iron Nut 1X Antenna Mount for DJI O3 2X M4*3 Screw |

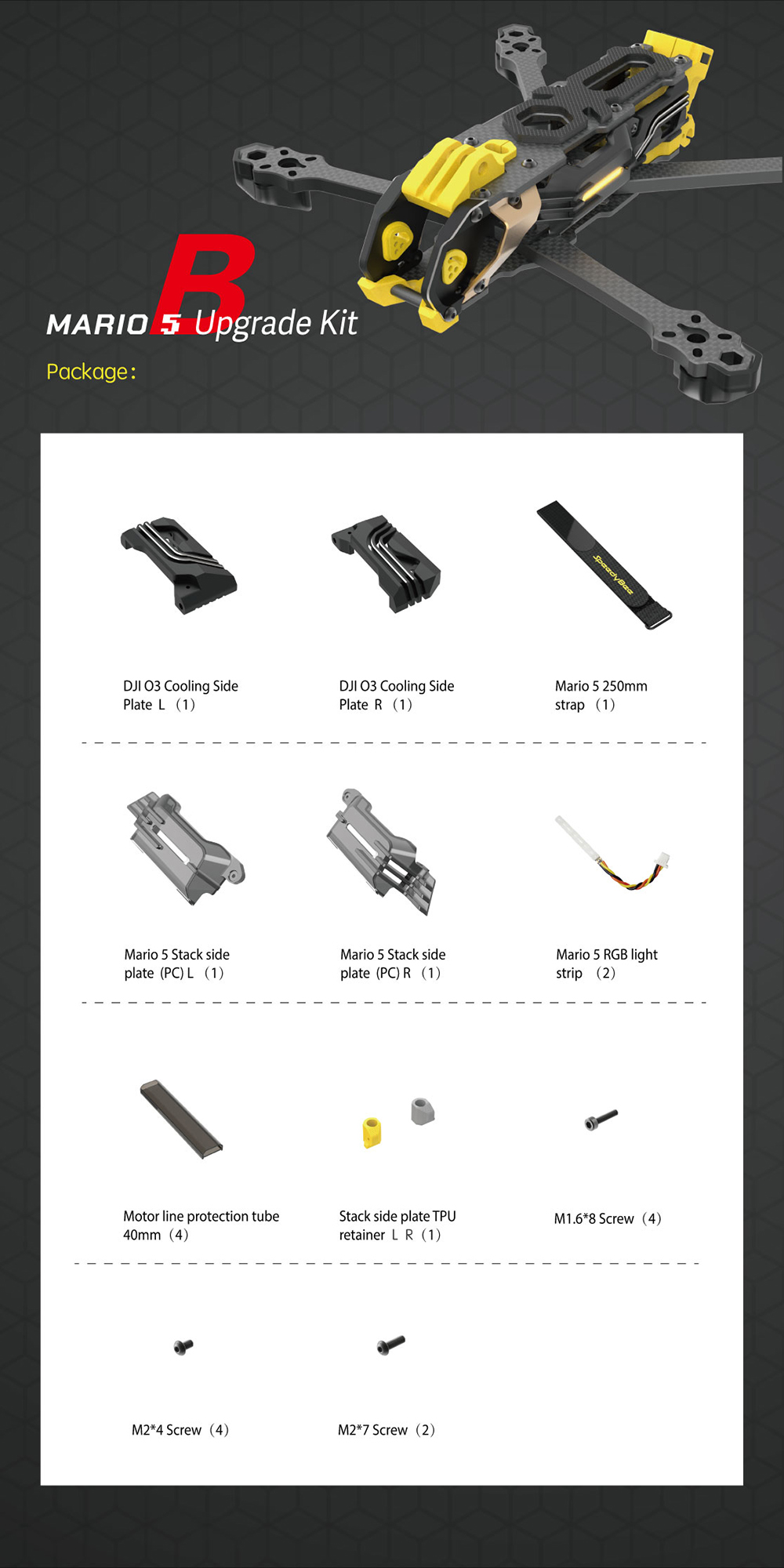

| Upgrade Kit B Version | 1X Cooling Side Plate L for 1X Cooling Side Plate R 1X Mario 5 Stack side plate (PC) L 1X Mario 5 Stack side plate (PC) LR 1X Mario 5 250mm strap 2X Mario 5 RGB light strip 4X Motor line protection tube 40mm 1X Stack side plate strap L R 4X M2*4 Screw 2X M2*7 Screw 4X M1.6*8 Screw |
| XH Pro Version | 1X Top Plate 1X Middle Plate 1X Bottom Plate 4X Arm 2X Supporting Board 1X Battery Anti-Slip Pad 3X D46 M3*22mm Aluminum Column 6X D5 M3*23mm Aluminum Column 1X Head L 1X Head R 4X Motor Protective Pad 1X Receiver Protective Cover 4X M1.6*8 Screw 4X M2*4 Screw 6X M2*7 Screw 14X M3*6 Screw 8X M3*12 Screw 4X M3*16 Screw 4X M3*25 Screw 2X Camera Silicone Mount + KIT A + KIT B |
| DC Pro Version | 1X Top Plate 1X Middle Plate 1X Bottom Plate 2X Supporting Board 2X Front Arm 2X Back Arm 3X D46 M3*22mm Aluminum Column 6X D5 M3*23mm Aluminum Column 1X Head L 1X Head R 4X Motor Protective Pad 1X Receiver Protective Cover 1X Battery Anti-Slip Pad 2X Camera Silicone Mount 4X M3*16 Screw 4X M3*25 Screw 4X M1.6*8 Screw 4X M2*4 Screw 6X M2*7 Screw 14X M3*6 Screw 8X M3*12 Screw + KIT A + KIT B |
