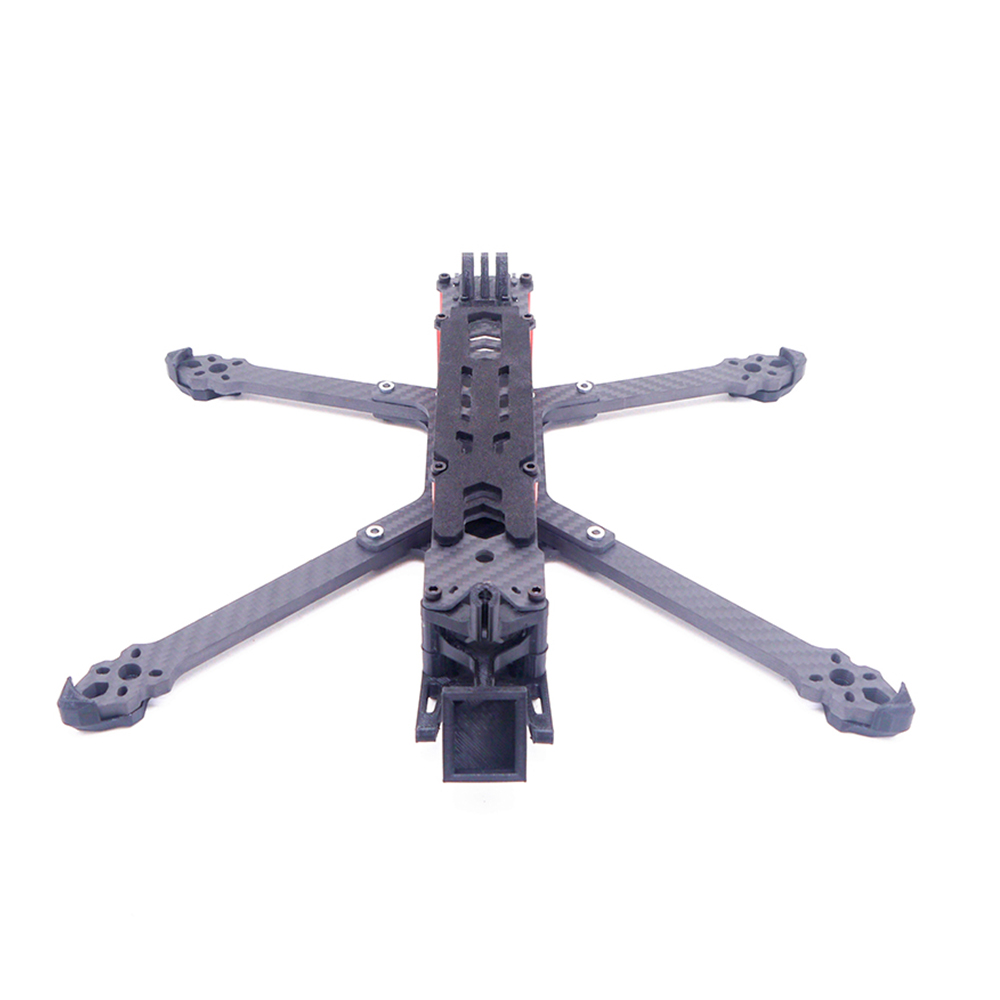

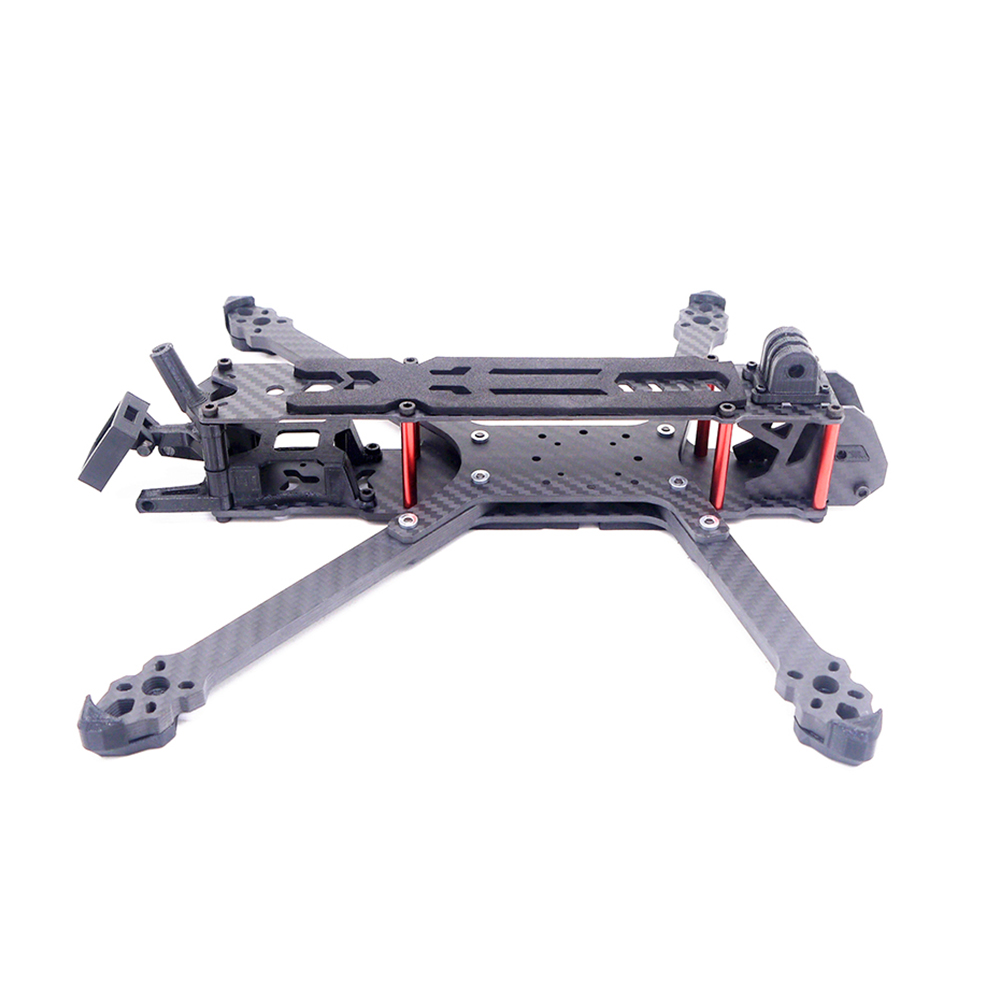

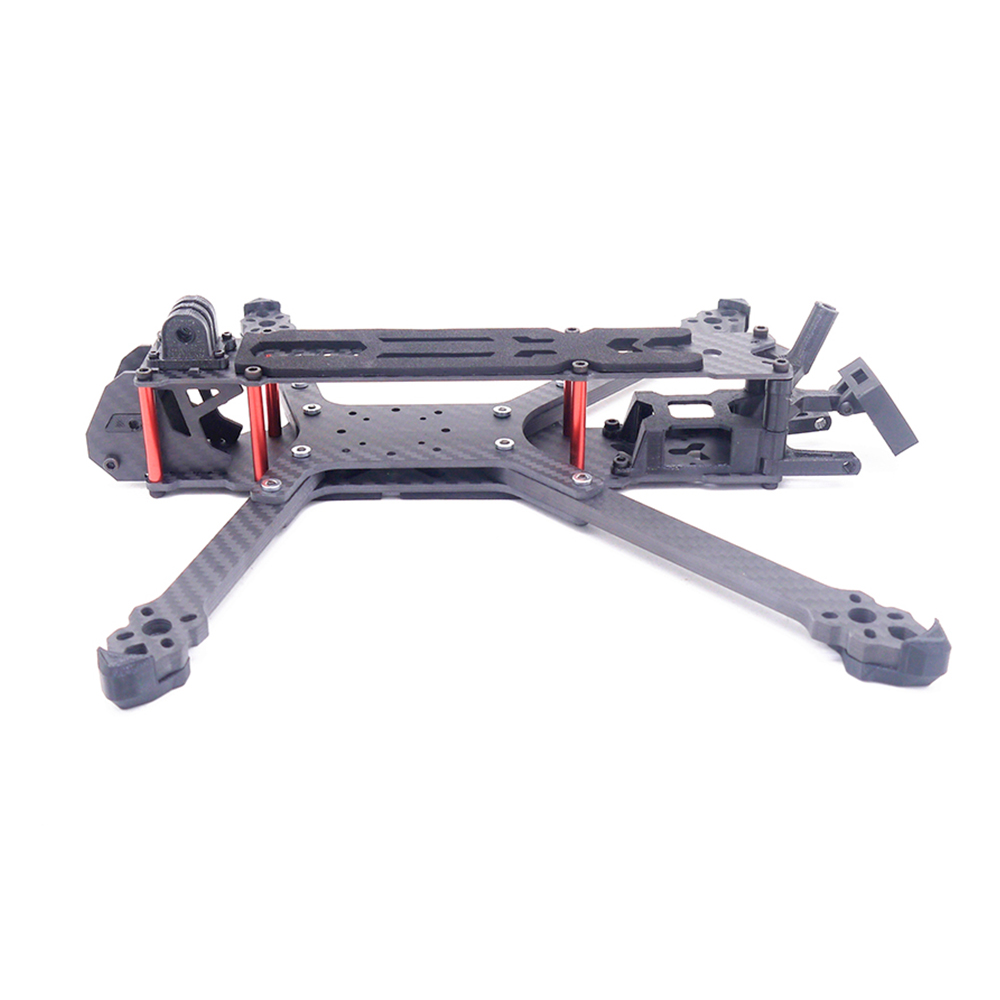

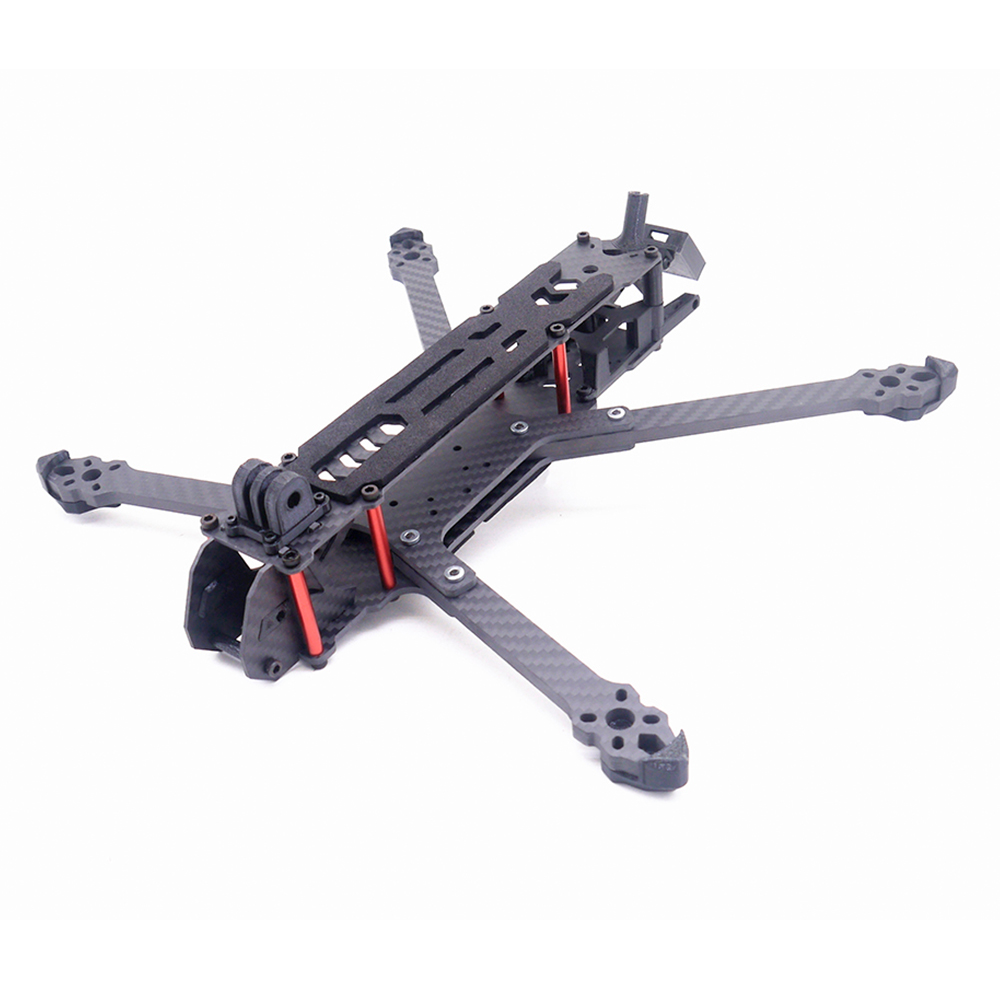

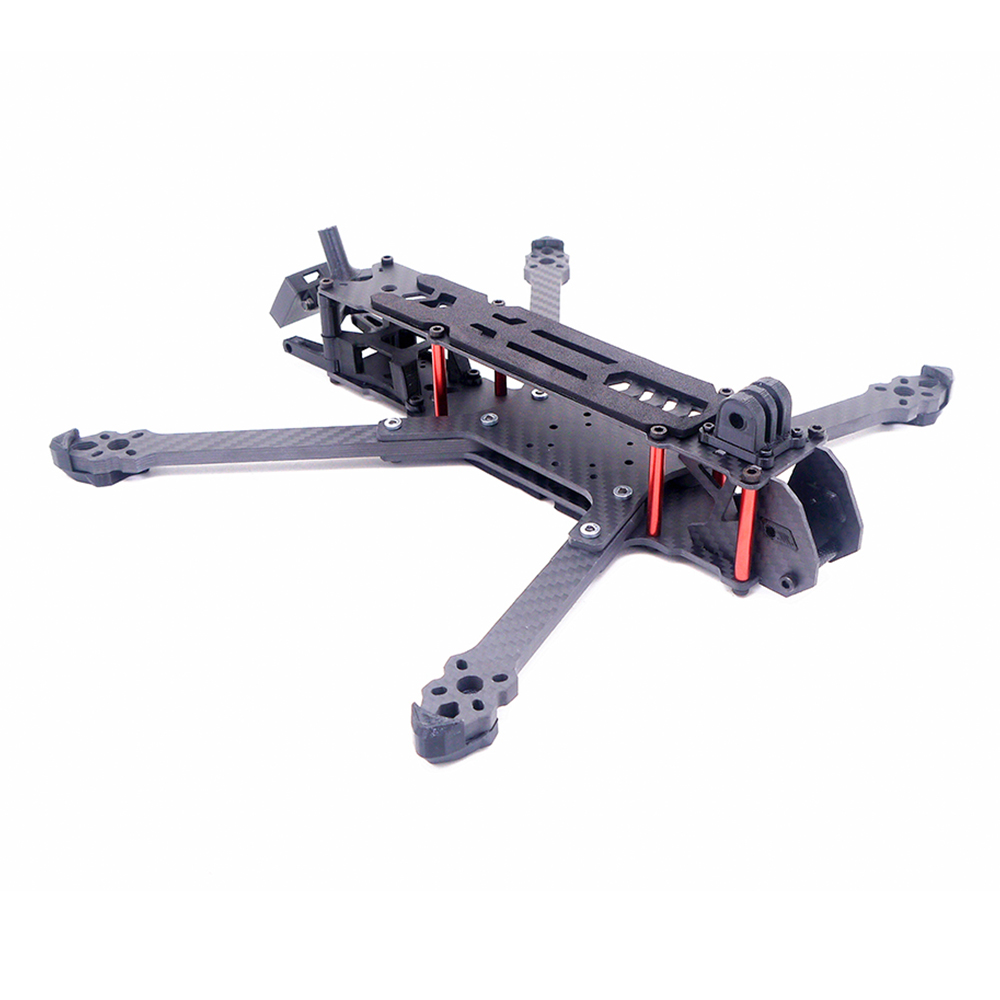

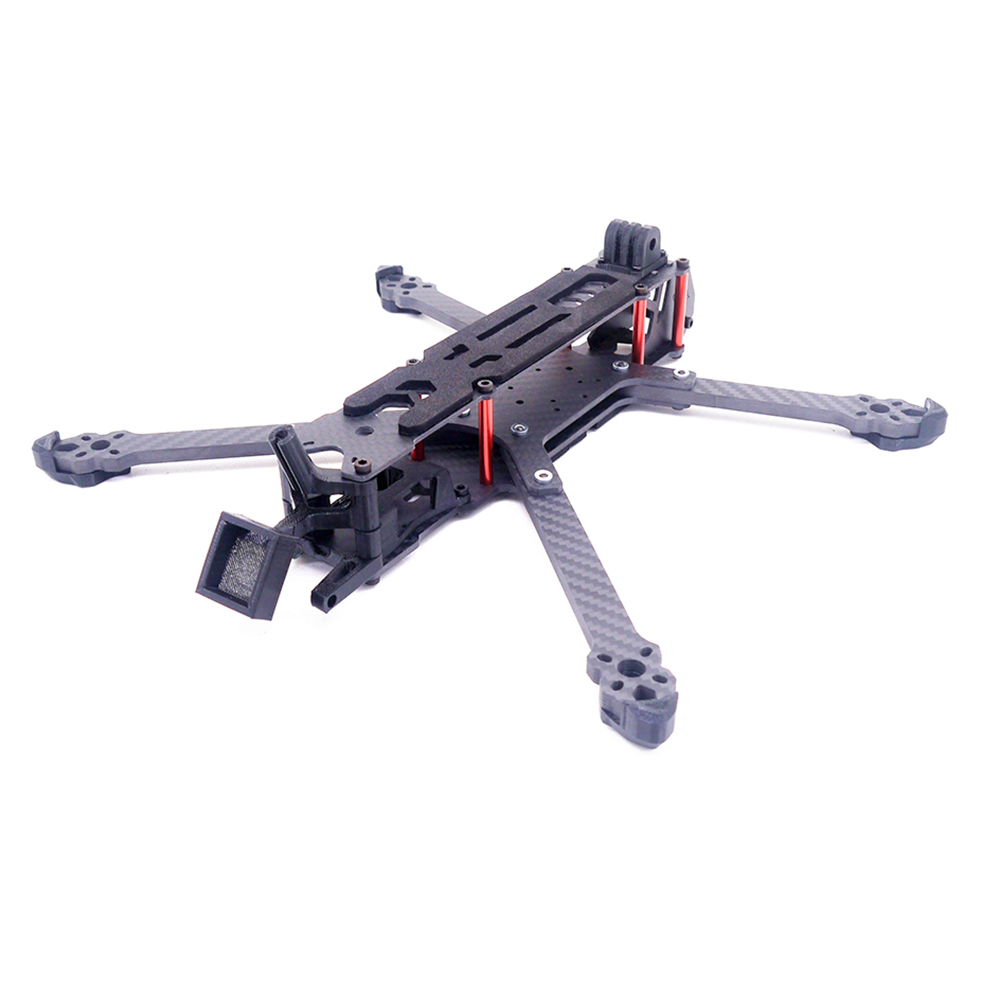

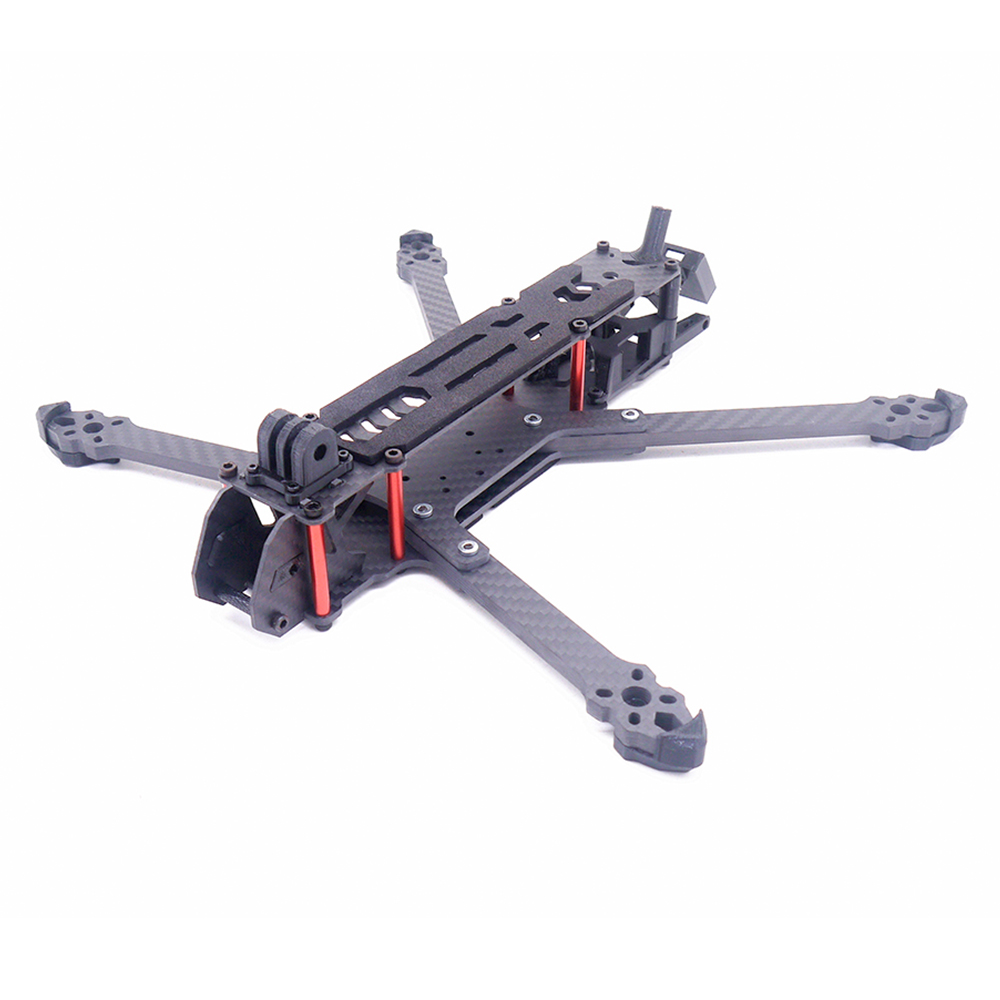

TEOSAW Erdog 9 9 Inch / Erdog 10 10 Inch Long Range Frame Kit Support DJI O3 for DIY FPV RC Racing Drone
Product Description
Specifications:
Version | Erdog 9 ( 9 Inch) | Erdog 10 ( 10 Inch) |
Wheelbase | Approximately 377mm | Approximately 411mm |
Weight | About 252g (including printed parts) | About 263g (including printed parts) |
Bottom board thickness | 3.0mm | 3.0mm |
Upper board thickness | 2.0mm | 2.0mm |
Sandwich board thickness | 2.0mm | 2.0mm |
Camera side board thickness | 2.0mm | 2.0mm |
Arm thickness | 6.0mm | 6.0mm |
Propellers | 9-inch | 10-inch |
Flight control hole distance | 20*20mm (M2) 25.5*25.5mm (M2) 30.5*30.5mm (M3) | 20*20mm (M2) 25.5*25.5mm (M2) 30.5*30.5mm (M3) |
Rear image transmission hole distance | 20*20mm (M2) 25.5*25.5mm (M2) 30.5*30.5mm (M3) | 20*20mm (M2) 25.5*25.5mm (M2) 30.5*30.5mm (M3) |
Camera installation width | 20mm | 20mm |
Motor installation hole position | 16*16mm (M3) 19*19mm (M3) | 19*19mm (M3) |
Printed parts material: 3D printed TPU material
Printed parts color: Black TPU
Suitable GPS seat: BN-220 GPS
Suitable for DJI O3 Air Unit / DJI Air Unit / VISTA Air Unit
Features:
Durabl and light: Weighing only 252g, this model uses a combination of sturdy materials for enhanced durability.
Versatility: With universally designed camera and antenna mounts, this cross-racing frame can be customized to your needs.
Compatibility: It is designed to accommodate several flight control systems with various hole distances and is suitable for DJI equipment.
TPU material: All its printed parts are made from durabl, shock-resistant TPU for improved stability and performance.
Detailed design: Equipped with a motor protection seat to help extend the service life of your motors.
Recommend Parts are Compatible: ( Not Included)
| 9 Inch | 10 Inch | |
| ESC | iFlight BLITZ Mini F7 FC & Mini E55 | iFlight BLITZ Mini F7 FC & Mini E55 |
| Brushless Motor | FLASHHOBBY M3110 3110 900KV | Flashhobby M3115 3115 900KV |
| Propeller | 9046 9 inch 3-balde | HQProp 10x4.5 10 Inch 3-Blade |
| VTX & Camera | DJI O3 Air Unit | DJI O3 Air Unit |
| Lipo Battery | 8000mAh 6S Li-ion | 8000mAh 6S Li-ion |
| GPS Module | BN220 GPS | BN220 GPS |
Package includes:
1 X Universal Sports Camera Base
2 X Side Lens Mount
1 X Surround Base for DJI O3
1 X Universal Antenna Base
1 X DJI Air Unit Surround Base
1 X DJI Air Unit Antenna Base
1 X Gps Printed Part
1 X 915 Antenna Base
4 X Motor Protective Bases
