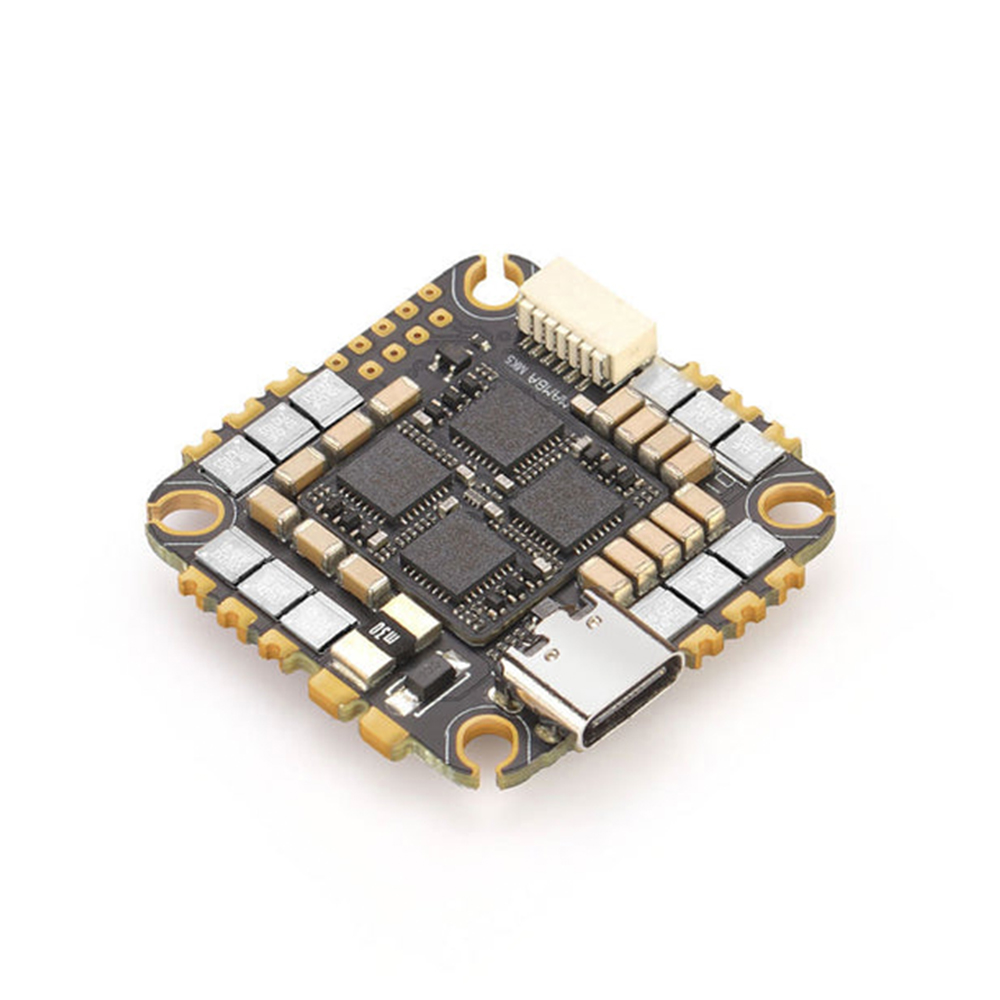

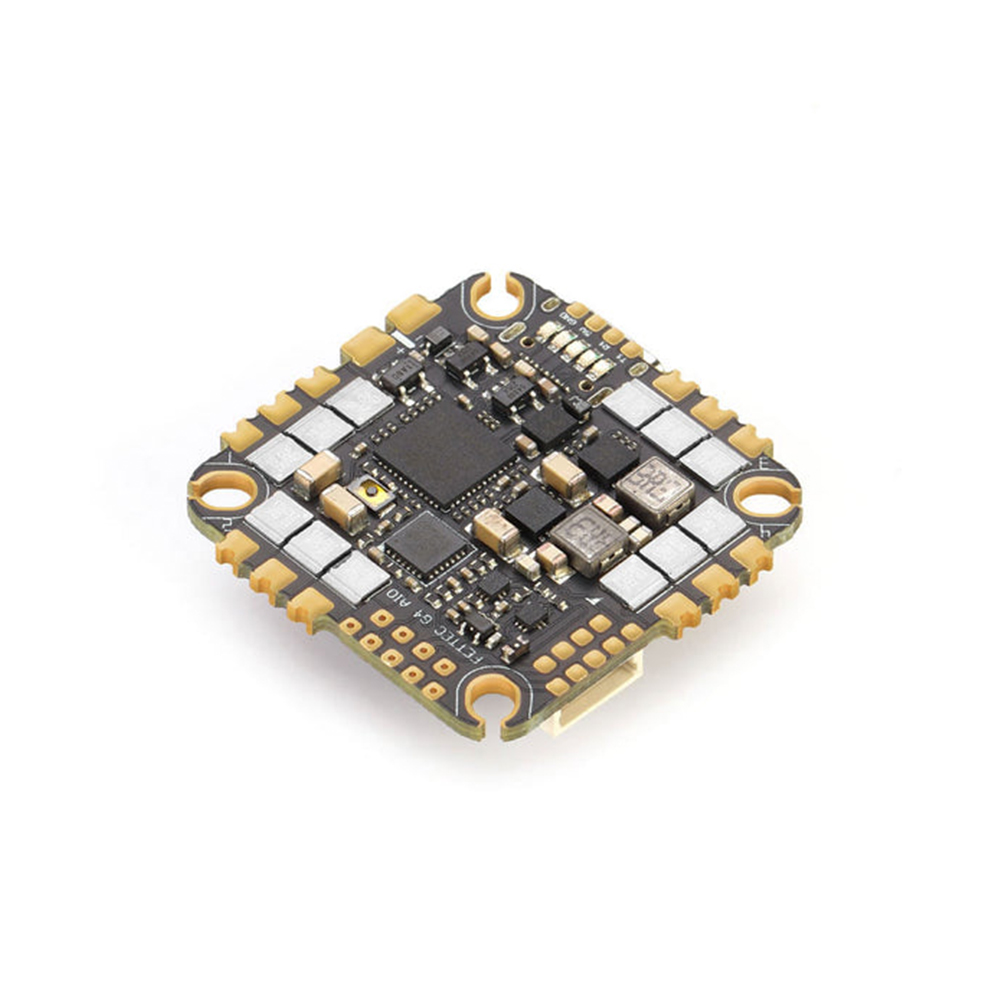

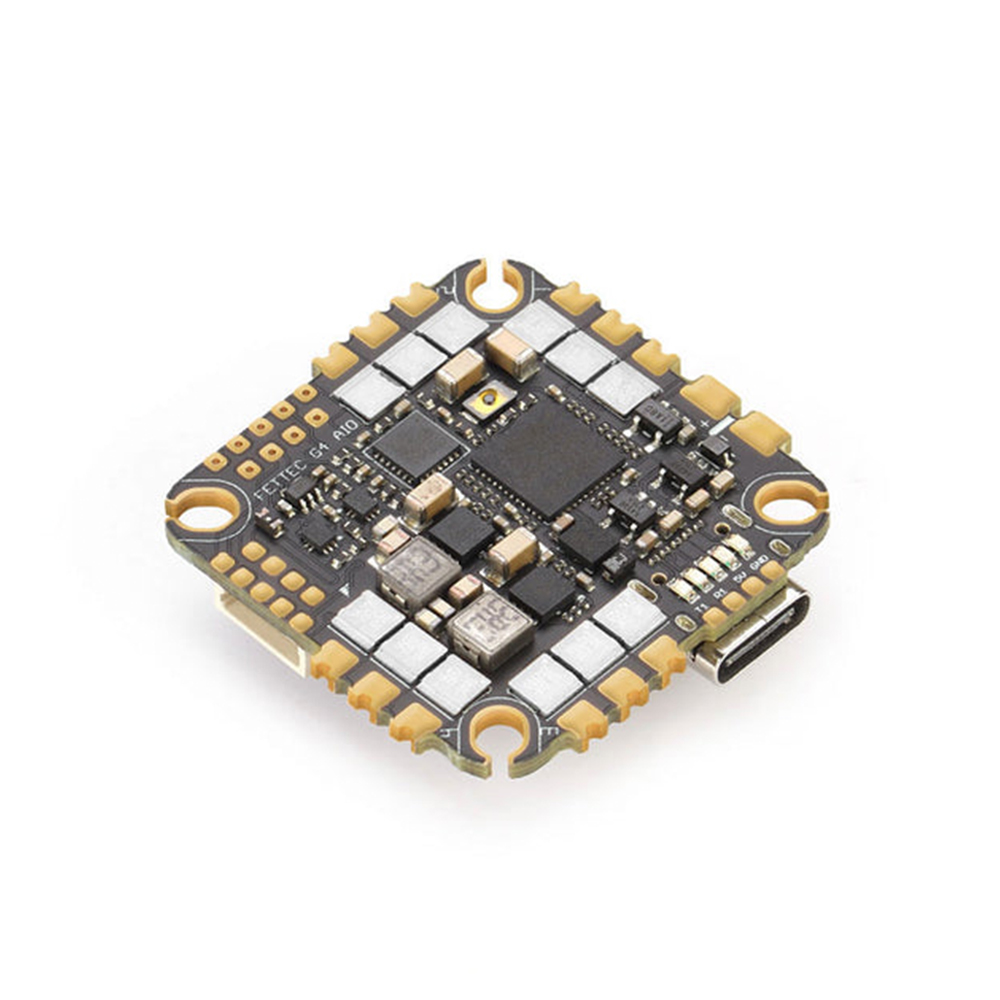

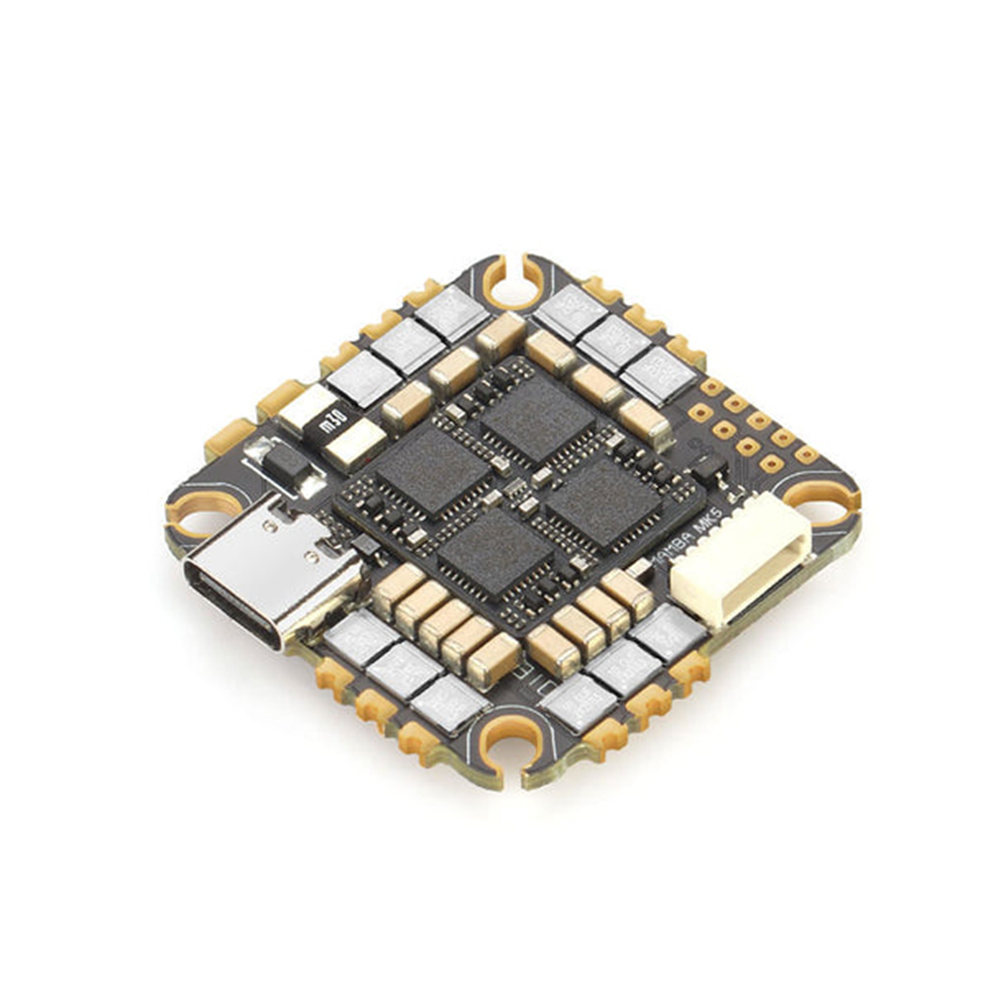

25.5x25.5mm MAMBA MK5 G4 AIO Alhpa 40A 6S Flight Controller with 5V 10V BEC Integrated with 4IN1 ESC for RC Drone FPV Racing
£167.98
Ex Tax: £167.98
Product Code: 2008427
Stock In Stock
Product Description
Specifications:
Brand: Mamba
Model: MK5 G4 AIO Alhpa
| Flight Controller | Target: Alhpa MCU: 170MHz STM32G473 GYRO: IIM-42652 OSD: Yes Uarts: 4 Set Motor Signal:4 Set ESC Soft: Dshot300/600/1200/2400 Power Led: Yes LED Controller: Yes AIR UNIT Port: Yes Buzz: Yes Input: 4~6S Lipo (14.8~25.2V) BEC Protection: Yes Receiver Protection: Yes TVS Protection: Yes BEC: 10V 2A& 5V 2A Mounting size: 25.5×25.5mm/M2 Overall dimensions: 35×34.5×6.5mm |
| Onboard 4in1 ESC | Input: 4~6S Lipo (14.8~25.2V) Continue Current: 40A×4 Burst current: 45A (10S) Target：BLHeli_32 MAMBA F40_128K SOFT: Dshot300/600/1200/2400 PWM:24~128K |
Package Included:
1x Flight Controller AIO ESC Board
1x High Frequency 470uF/35V
1x sh1.0 Cable for Air Unit
2x 16AWG 60mm Cable
1x AMASS Original XT60 Connector
