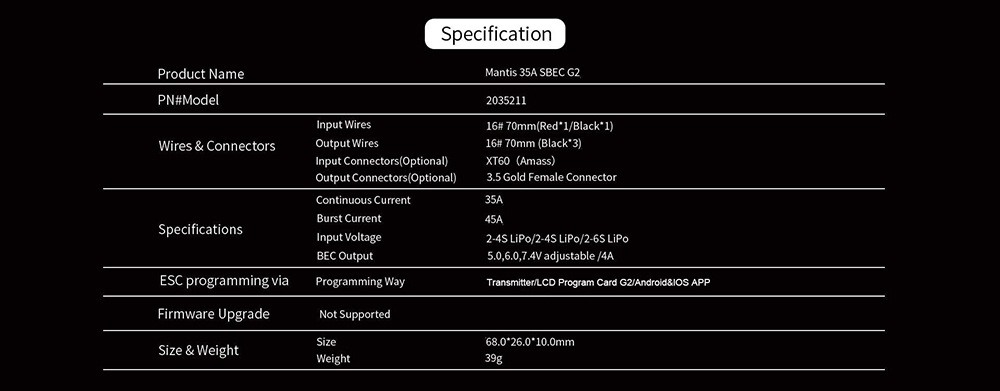

Specifications:

Brand Name: ZTW

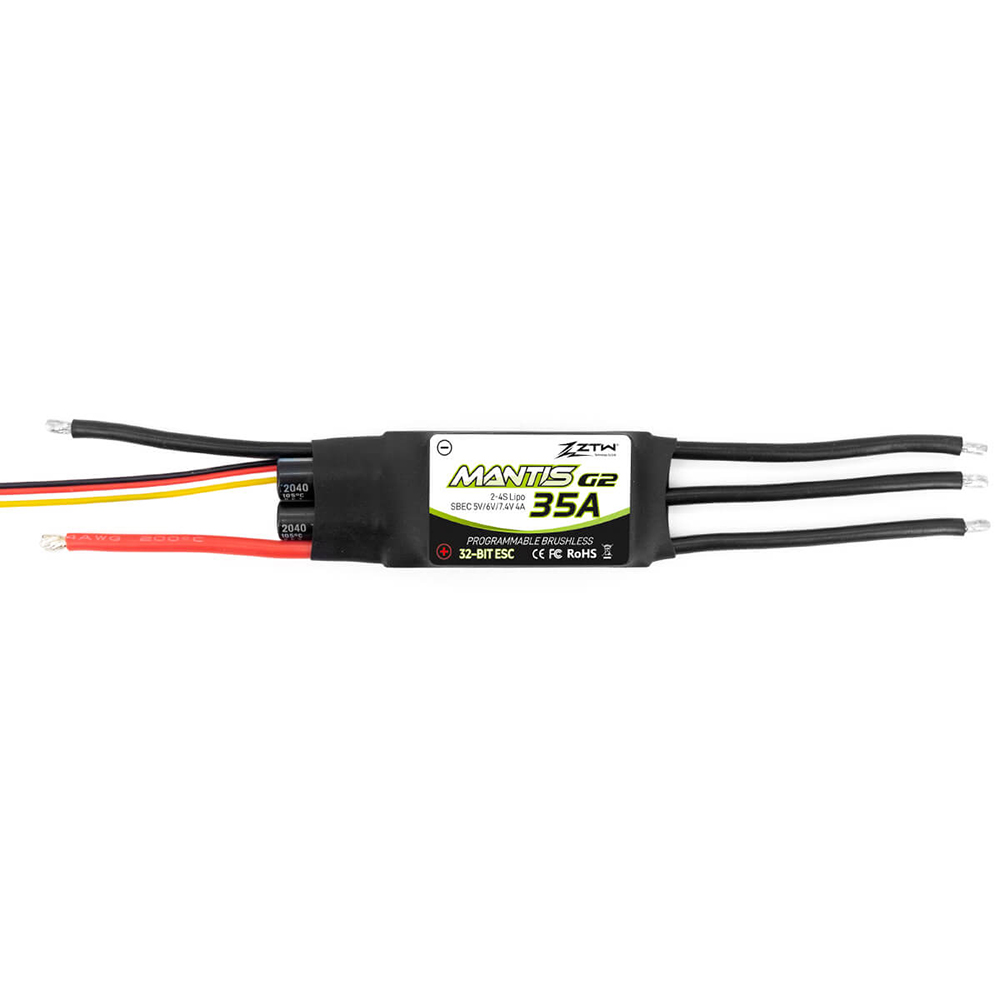

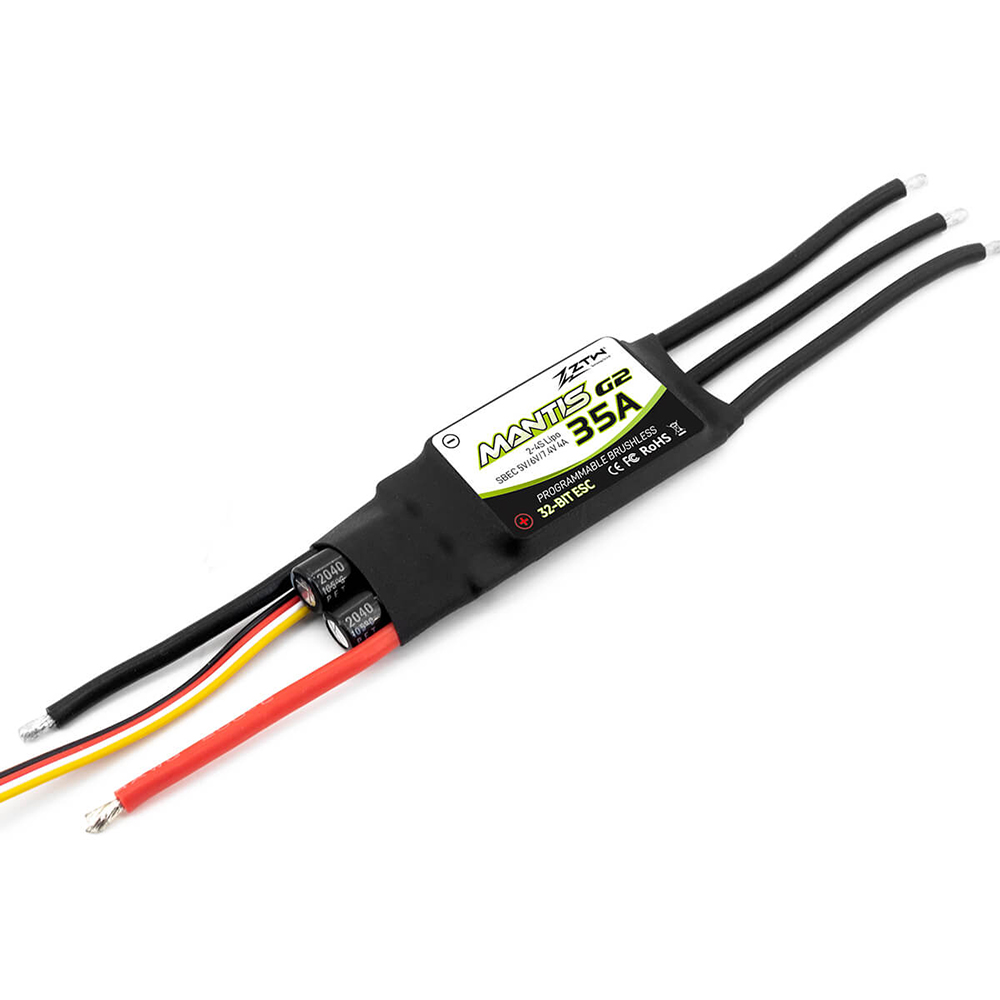

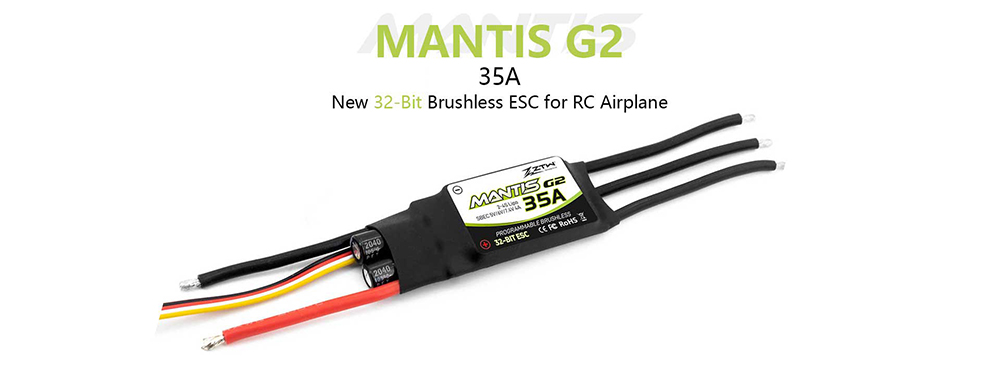

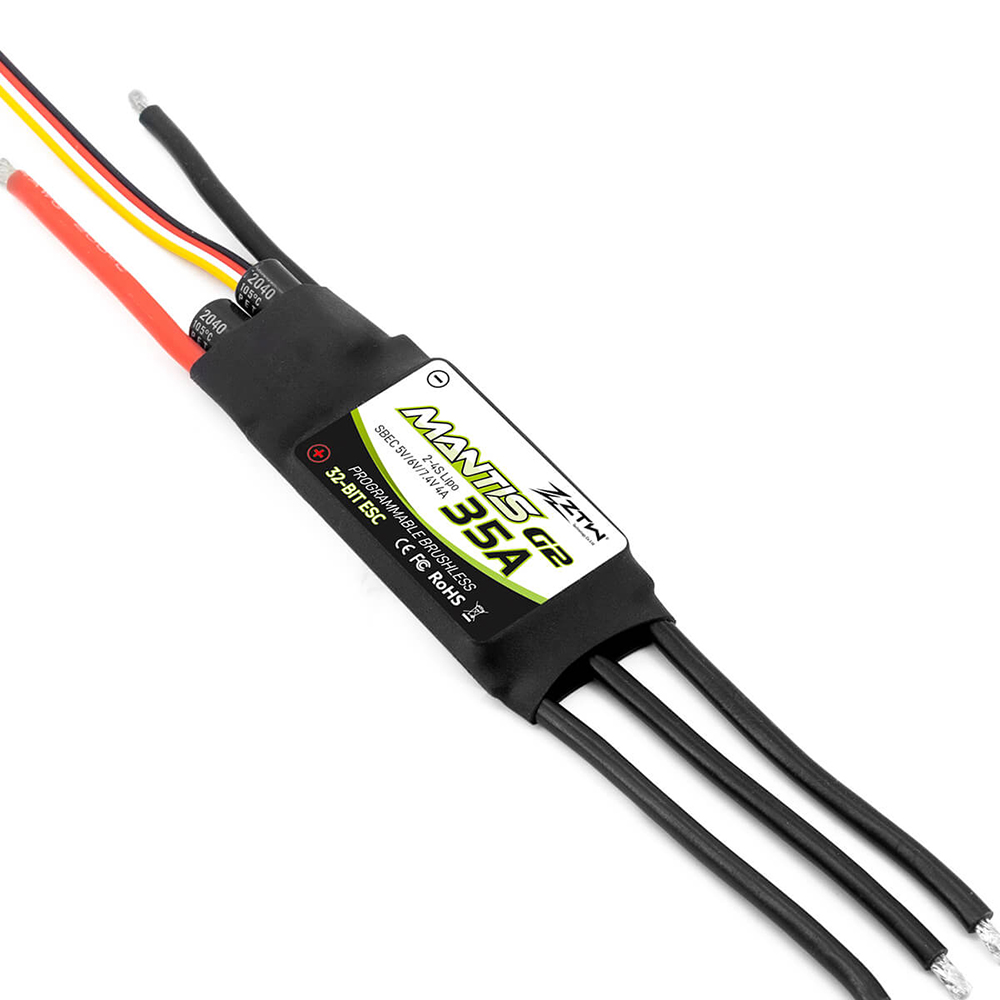

Product Name: Mantis 35A SBEC G2

PN#Model: 2035211

Input Wires: 16# 70mm(Red"1/Black"1)

Output Wires: 16# 70mm (Black*3)

Input Connectors: XT60(Amass)

Output Connectors: 3.5 Gold Female Connector

Continuous Current: 35A

Burst Current: 45A

Input Voltage: 2-4S LiPo

BEC Output: 5/6/7.4V adjustable /4A

ESC programming via: Programming Way Transmitter/LCD Program Card G2/Android&lOS APP

Firmware Upgrade: Not Supported

Size: 68.0*26.0*10.0mm

Weight: 39g

Features:

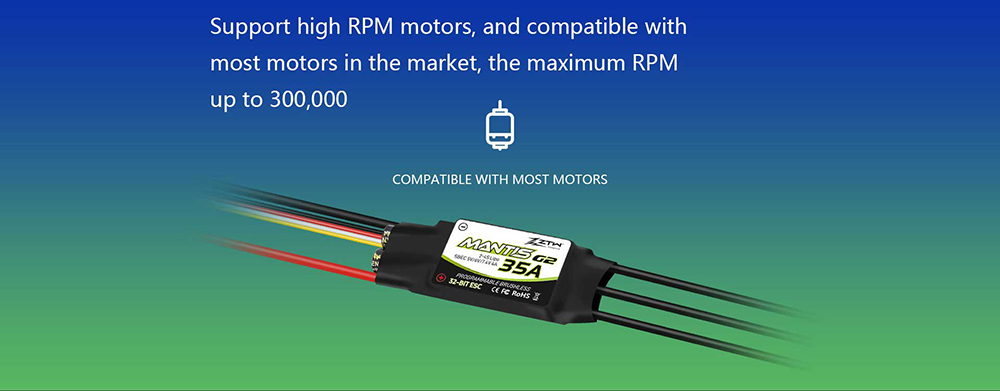

- Powered by a new generation 32-bit microprocessor, ensuring faster throttle response, more precise startup, and better compatibility with high RPM motors.

- Enhanced BEC with superior efficiency and lesser heat generation compared to the first-generation Mantis Slim Series.

- Separate control and power1 board design minimizes circuit interference and offers optimal performance even under heavy load.

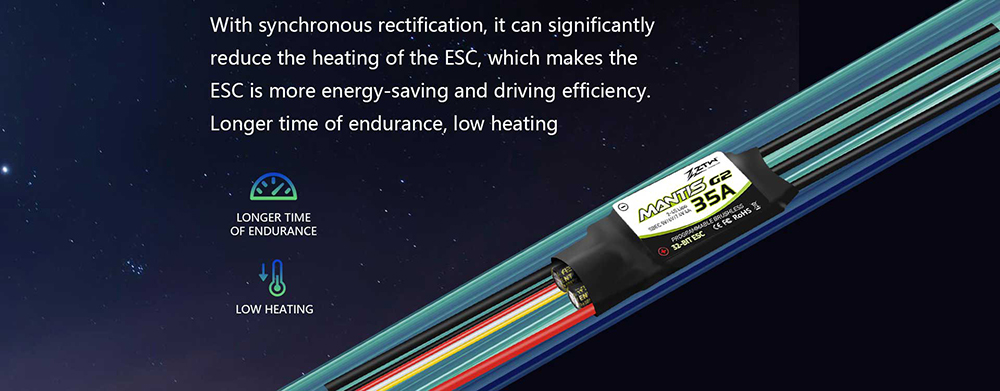

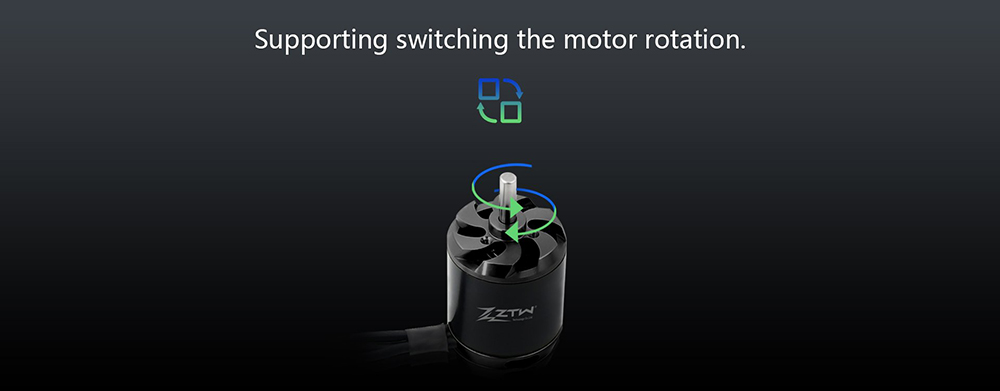

- Supports motor rotation switching and boasts synchronous rectification for reduced heat and longer run times.

- Multiple protection features: including overheat, low-voltage cutoff, signal loss, and more.

- Easily programmable via phone app, LCD card, or transmitter.

Package Included:

1x ZTW Mantis G2 35A SBEC
