Description:

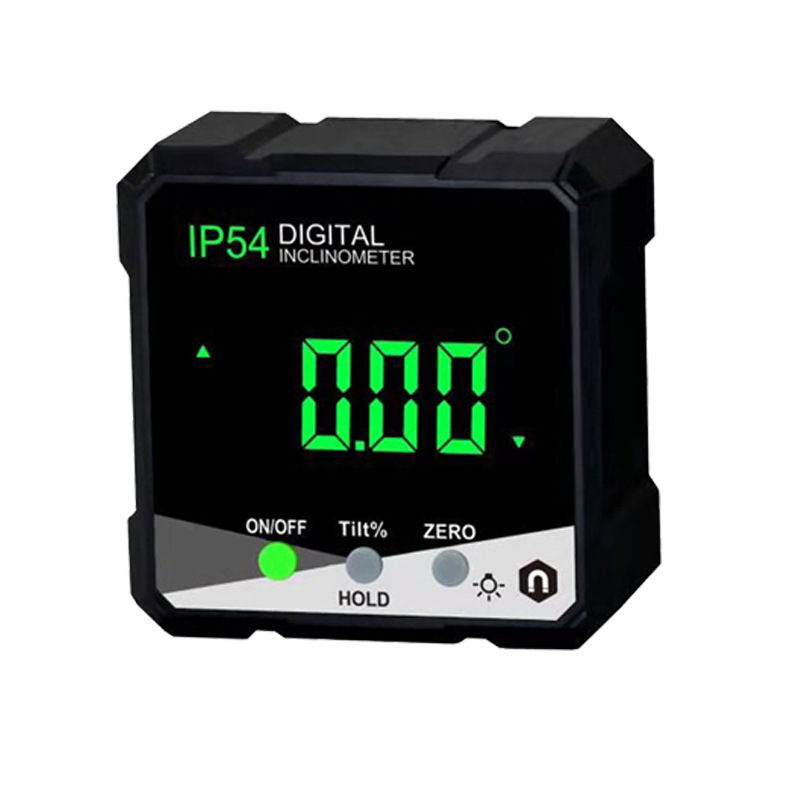

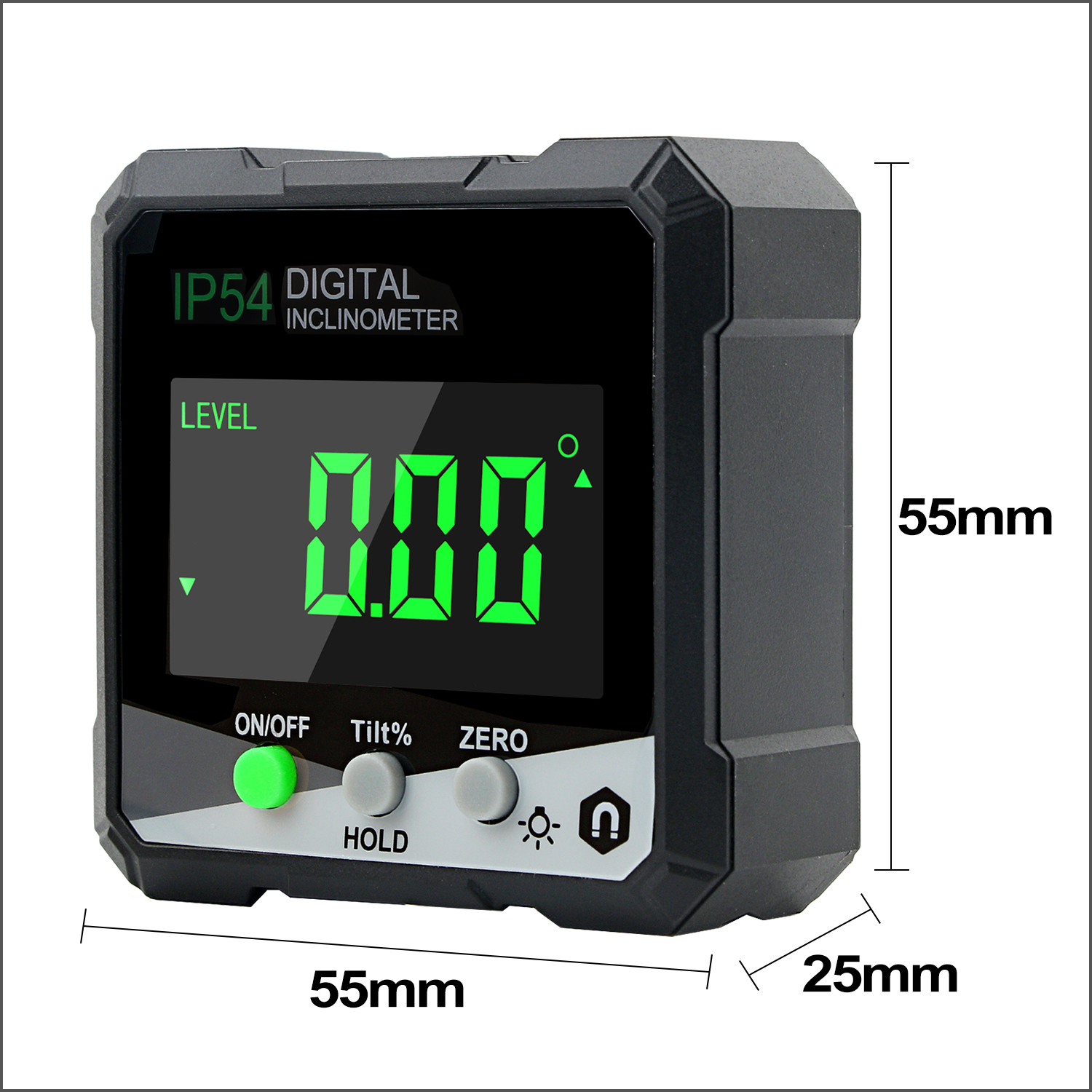

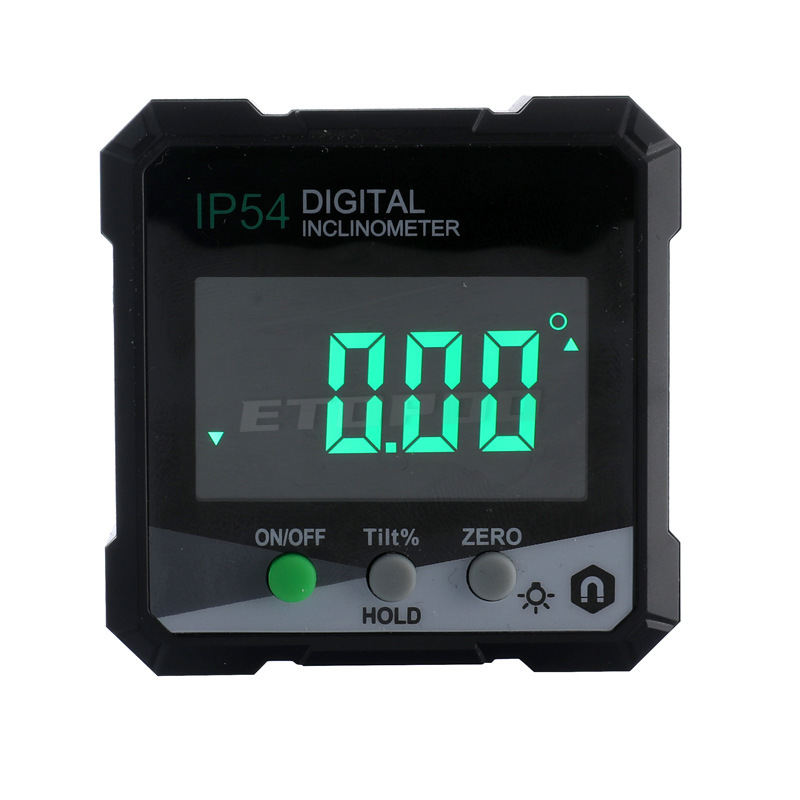

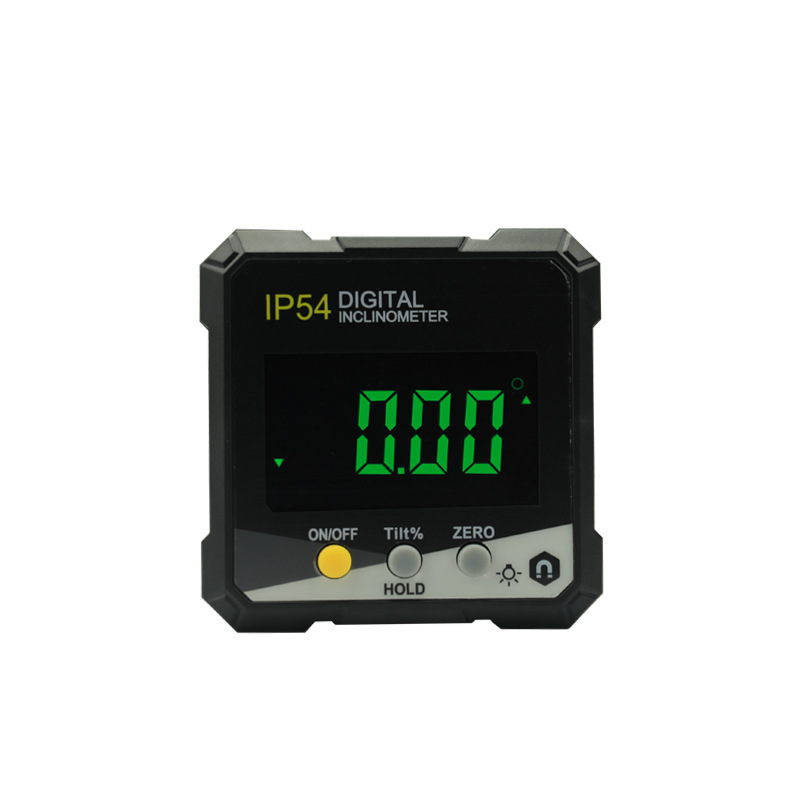

Digital Level Angle Gauge 360 Degree Mini Measuring Digital Inclinometer Electronic Universal Bevel Protractor

Specification:

Measuring range: 4 x 90°

Accuracy: 0.2 °

Resolution: 0.05 °

Repeatability: 0.1 °

Working temperature: 0℃ - 40 ℃

Working humidity: 40% - 80%

Battery: require 2 x 1.5V batteries

Feature:

1. Large LCD Backlight Display: Data retention and slope function with large LCD backlight display, easy to read measurement data.

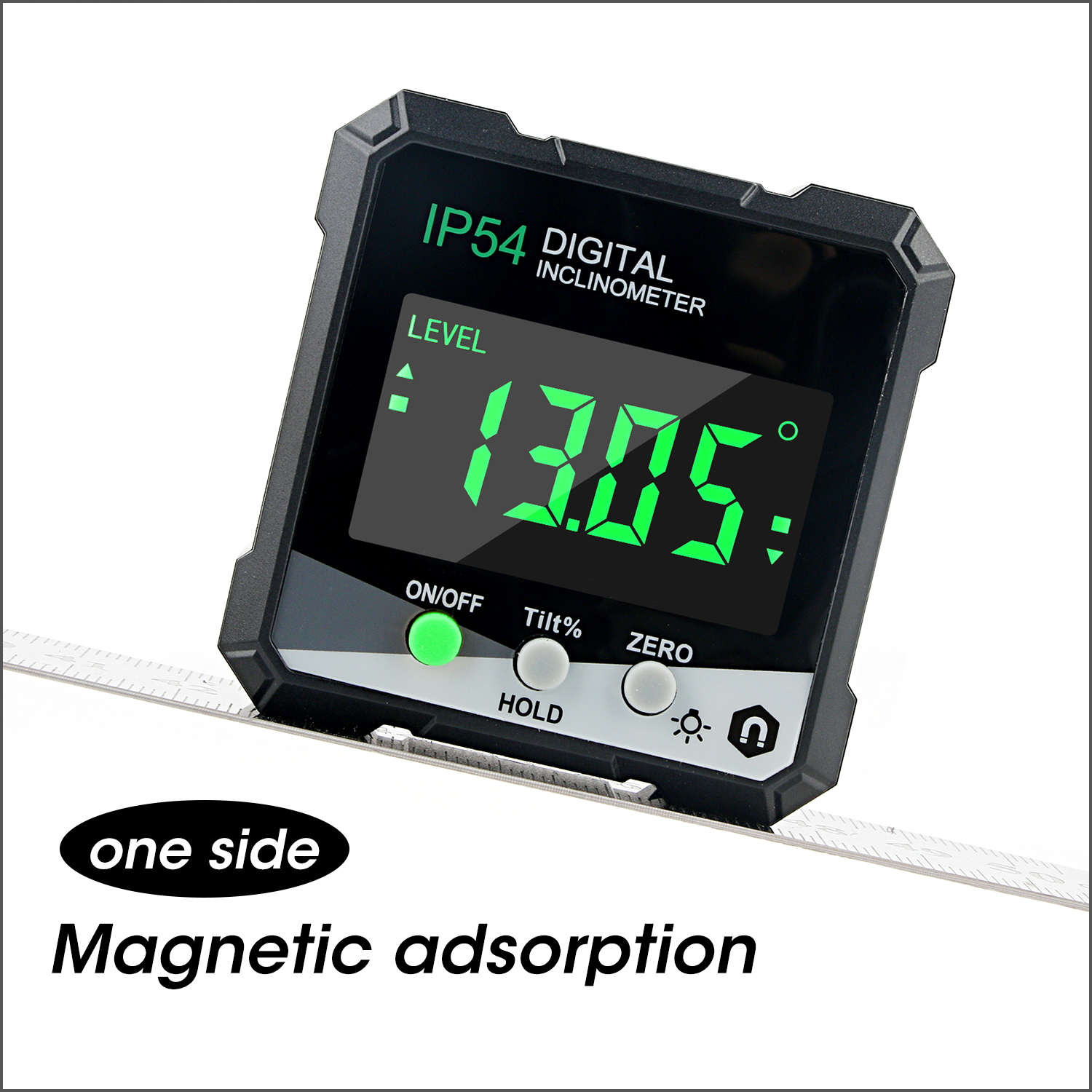

2. Strong Magnet At Bottom: The strong magnet at the bottom absorbs the workpiece, which is convenient for measurement.

3. Automatically Flip Up Reading: When the inclinometer is inverted, the angle reading on the LCD will automatically flip up for easy reading.

4. For Professionals: Suitable for construction workers, decorating designers, maintenance workers, carpenters or other professionals.

5. Sensitive Response: Digital inclinometer possess sensitive response, provide real time digital display and fast reading.

ZERO Button

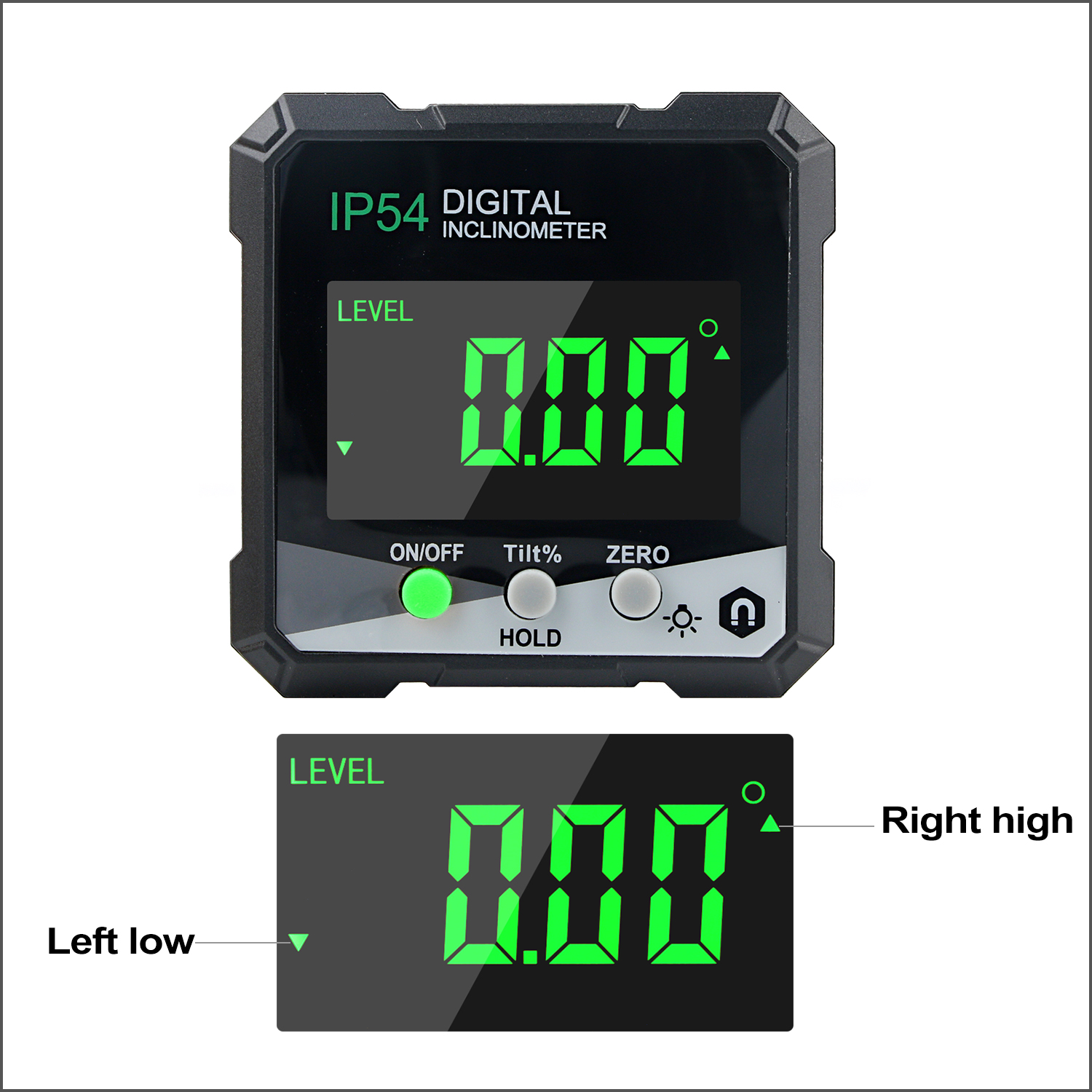

1. Measurement initially displays 0.00 on the LCD, when it displays "▲"on the left side"▼"on the right side, it means the left side is higher and right side lower, when it displayv"▼"on the left side"▲" on the right side, it means the left side is lower and right side higher.

2. Turn on the instrument and begin to measure ,thethe read-out is the relative angle of theabsolute level.

3. Press the " ZERO " button , reset the value toproceed relative measurement.

Absolute Measuring Mode

Turn on the instrument and begin to measure , theread-out is the relative angle of the absolute level(The absolute zero position of the instrument hasbeen factory-calibrated)

Relative Measuring Mode

The instrument allows to set zero at any slope aseference surface , and to measure the relativeangle based on this slope.

1. When it turns on , put theinstrument onto themeasuring surface ( showingthe angle comparing toabsolute level.

2. Short press ZERO buttonit displays 0.00.

3. Put the instrument on the surface that needs to be measured , or change the angle on the reference surtace , there adout displays the angle value relative to the reference surface(here it is 25).

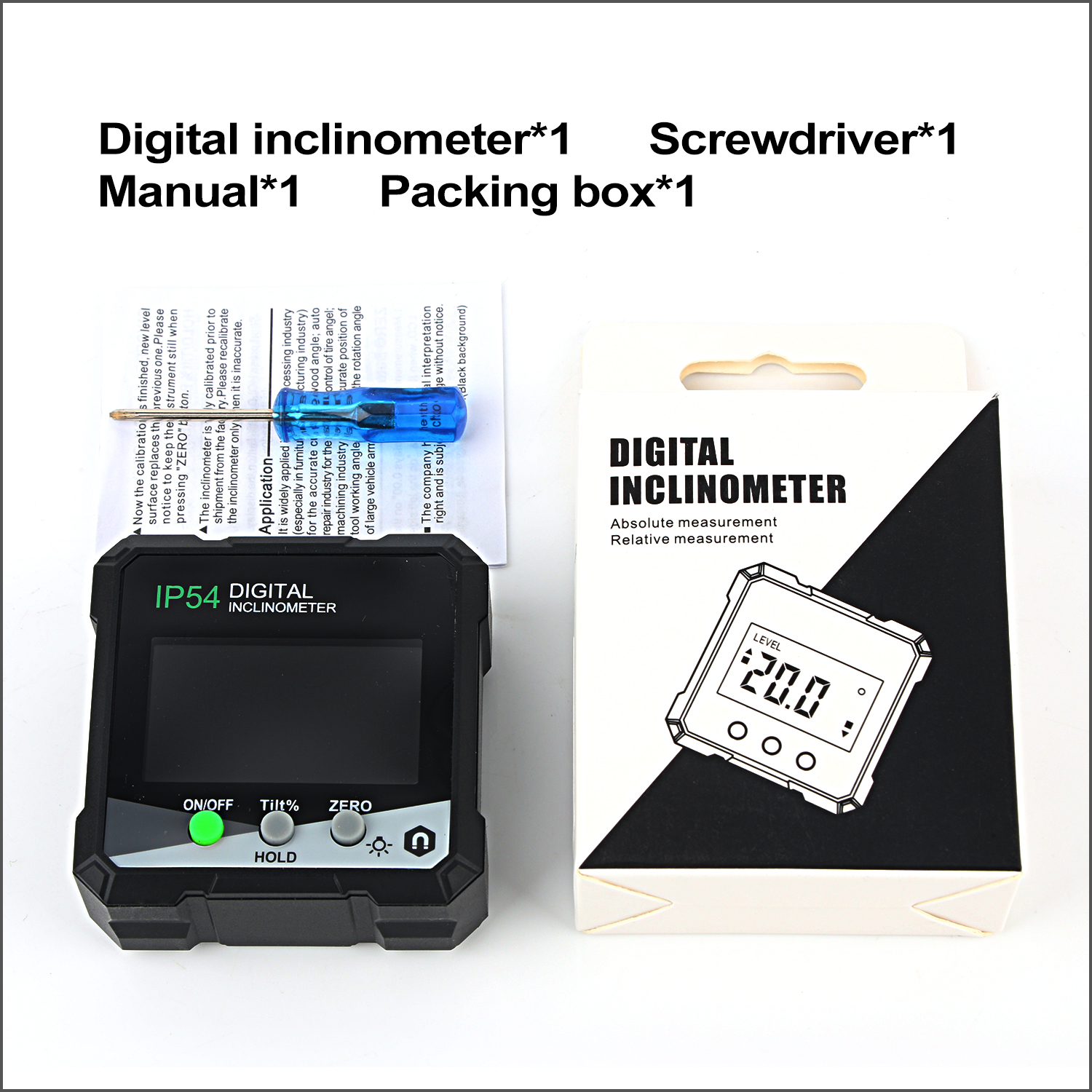

Package Included:

1 x Digital Inclinometer
