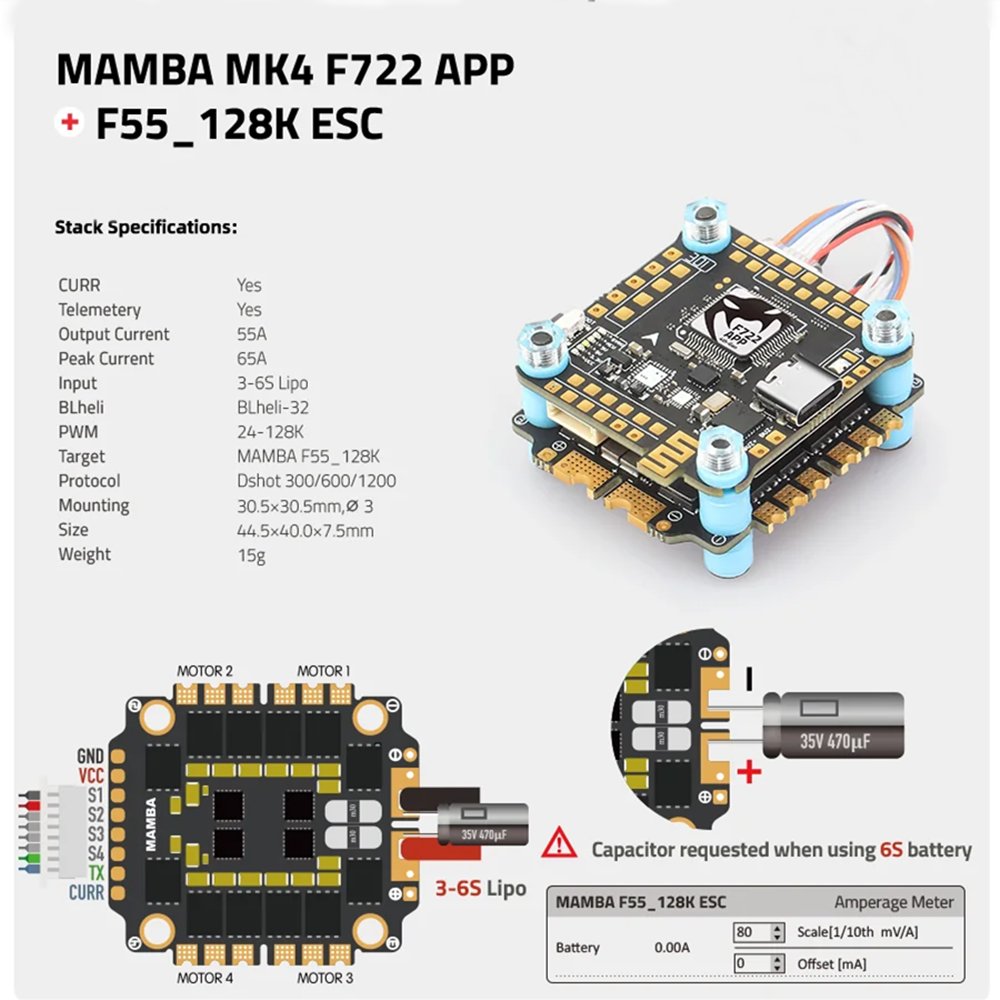

FC Specifications MAMBA MK4 F722APP MCU: 216MHz STM32F722 GYRO: MPU6000 Target：MAMBA F722_2022A OSD: Yes Blacbox: 16M Flash Memory Barometer: SPL06 Uarts: 6Set I2C: Yes F.Port: Yes RSSI: No Buzzer Pad: Yes CURR Pad: Yes ESC Signal: 8 Set ESC Soft: Dshot300/600/1200 ESC Telemetry: Yes Power Led: Yes LED Controller:BF LED/MB LED AIR UNIT Port: Yes WIFI: SpeedyBee APP VTX Switch: Yes Receiver Protection: Yes TVS Protection: Yes BEC:3.3V 0.5A& 5V 3A& 9V 3A Input: 3~6S Lipo (12.6~25.2V) Mounting size: 30.5mm/M3 ESC Specifications MAMBA F55_128K Input voltage: 3~6S Lipo (12.6V~25.2V) Continue current:55A×4 Burst current:65A (10S) BEC: No Target：BLHeli_32 MAMBA F55_128K SOFT: Dshot300/600/1200 PWM:24~128K TVS Protection: Yes Mounting size: 30.5mm/M3 Package Included:

MAMBA MK4 F722APP x1

MAMBA F55_128K ESC X1

High Frequency 1000uF/35V ×1 8pin sh1.0 ×2 AIR UNIT sh1.0 ×1 12AWG 100mm ×2 AMASS Original XT60×1
