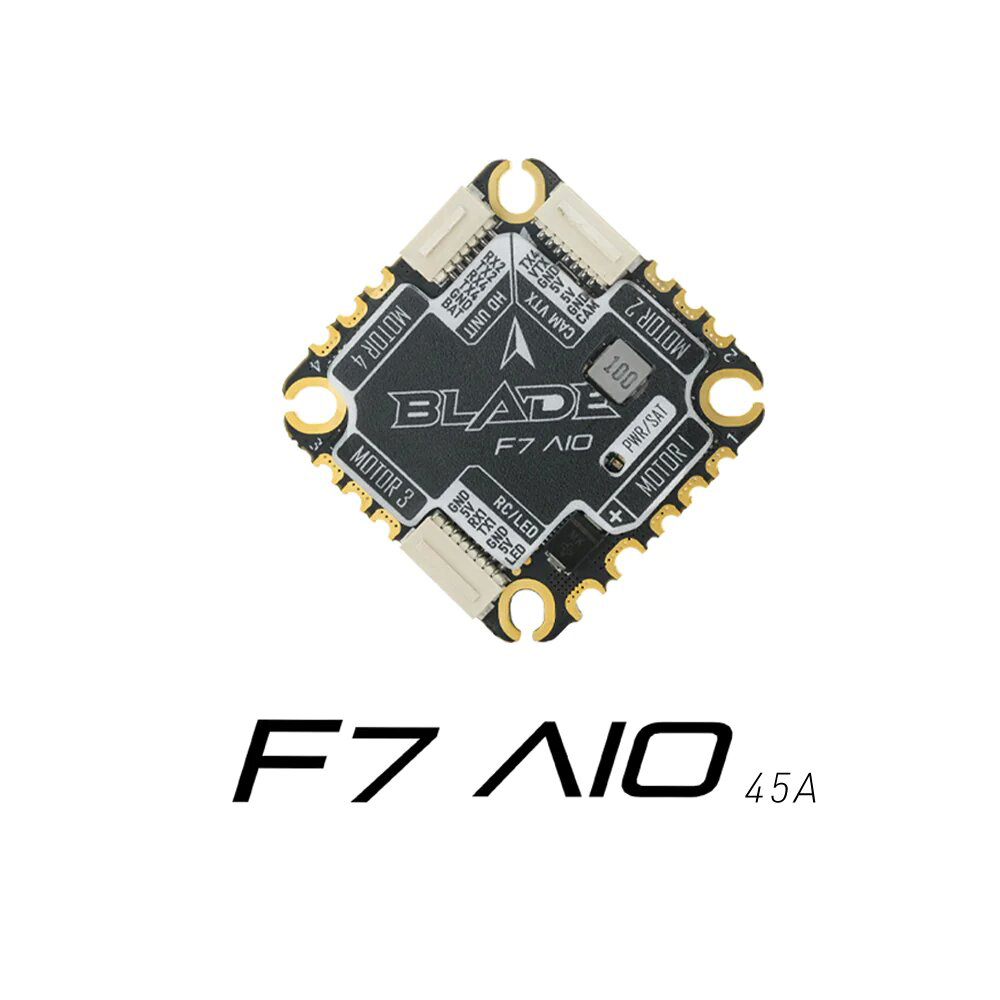

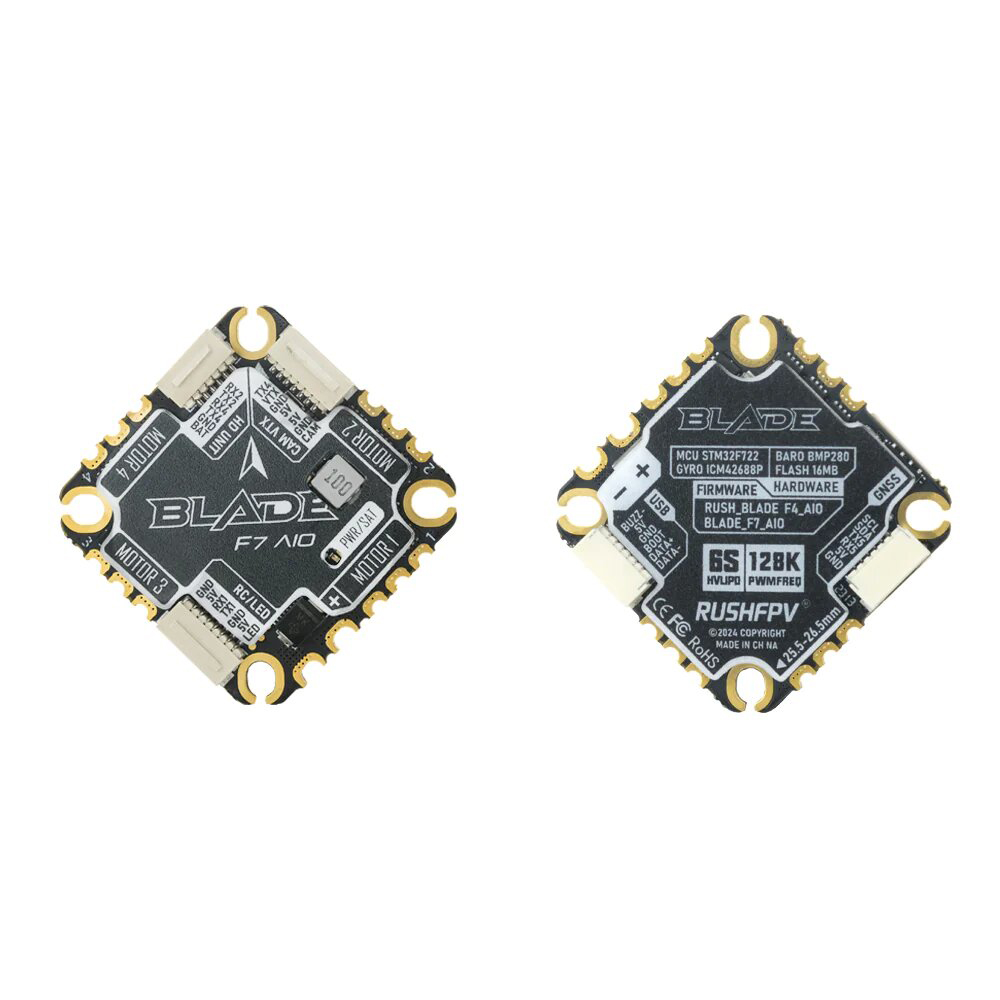

30.5x30.5mm RUSHFPV BLADE F7 45A AIO Flight Controller Blackbox BLHeli_32 4IN1 Brushless ESC 3-6S for FPV RC Racing Drone
£165.98
Ex Tax: £165.98
Product Code: 2007293
Stock In Stock
Product Description
Specifications: ( Manual)
Brand: RUSHFPV
Model: BLADE F7 45A AIO
| MCU | FC: STM32F722 ESC: AT32F421 4X |
| SENSOR | GYRO: ICM42688P BARO: BMP280 ADC: Vbat / Curr |
| BEC | INPUT: 8-36V (3-6S) OUTPUT: 5V / 1A |
| BLACKBOX | 16MB On Broad |
| VTX | On Broad CVBS OSD HD UNIT |
| ESC | BLHELI_32 Con. Current: 45A |
| I/O PORT | 5X UART* 1X I2C 1X LED STRIP |
| WEIGHT | 9g |
| SIZE | 33×33mm |
Beta Flight Firmware: BLADE_F7_AIO
BLHELI 32 Firmware: RUSH_BLADE_F4_AIO
Features:
- 40V high voltage MOSFET, fully support 6S system construction.
- BLHELI 32 ESC firmware,supports dynamic PWM refresh rates up to 128K.
- High quality 8 copper layer PC8. Compact form factor, large pads for easy soldering.
- On·board socket for easy
- STM32 F722 MCU, On-board barometer, analog OSD and black box.
Package Included:
1x RUSHFPV BLADE F7 45A AIO
