30.5x30.5mm JHEMCU GHF722AIO ICM F7 Flight Controller with 5V BEC Output AIO 40A BL_S 4IN1 ESC 2-6S for FPV Racing RC Drone
£127.98
Ex Tax: £127.98
Product Code: 1981529
Stock In Stock
Product Description
Specification:
Brand: JHEMCU
Model: GHF722AIO ICM
Item Name: F7 Flight Controller AIO 40A ESC
| F7 Flight Controller | MCU: STM32F722/21 6MHZ IMU: ICM-42688-P /Gyro/Accel OSD: AT7456E Barometer: Yes Blackbox: 8MB Input Voltage: 2-6S BEC: 5V 2.5A ( +-0.1V) Receiver: Support ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX IIC: YES USART: UART1/UART2/UART3/UART4/UART5/UART6 Led_ Strip: YES Buzzer: Support 5V active USER1 Mode: Support, PINIO Pad output Current Port: YES Voltage sensor: YES DFU Button: YES USB: Micro USB Firmware: betaflight_ 4.3.0 JHEF7DUAL.HEX Size: 33x33mm ( Mounting Hole: 25.5-26.5*3mm) Weight: 7.3g |
| 40A 4in1 ESC | Con. Current: 40A Burst Current: 45A MCU: EFM8BB21F16G Type: Bluejay / Blheli_ S ESC Firmware: BluejayG_ H 30_ 48_ v0.16.hex ESC signal: PWM,Oneshot125,Oneshot42,Multishot,
Dshot150,Dshot300,Dshot600 |

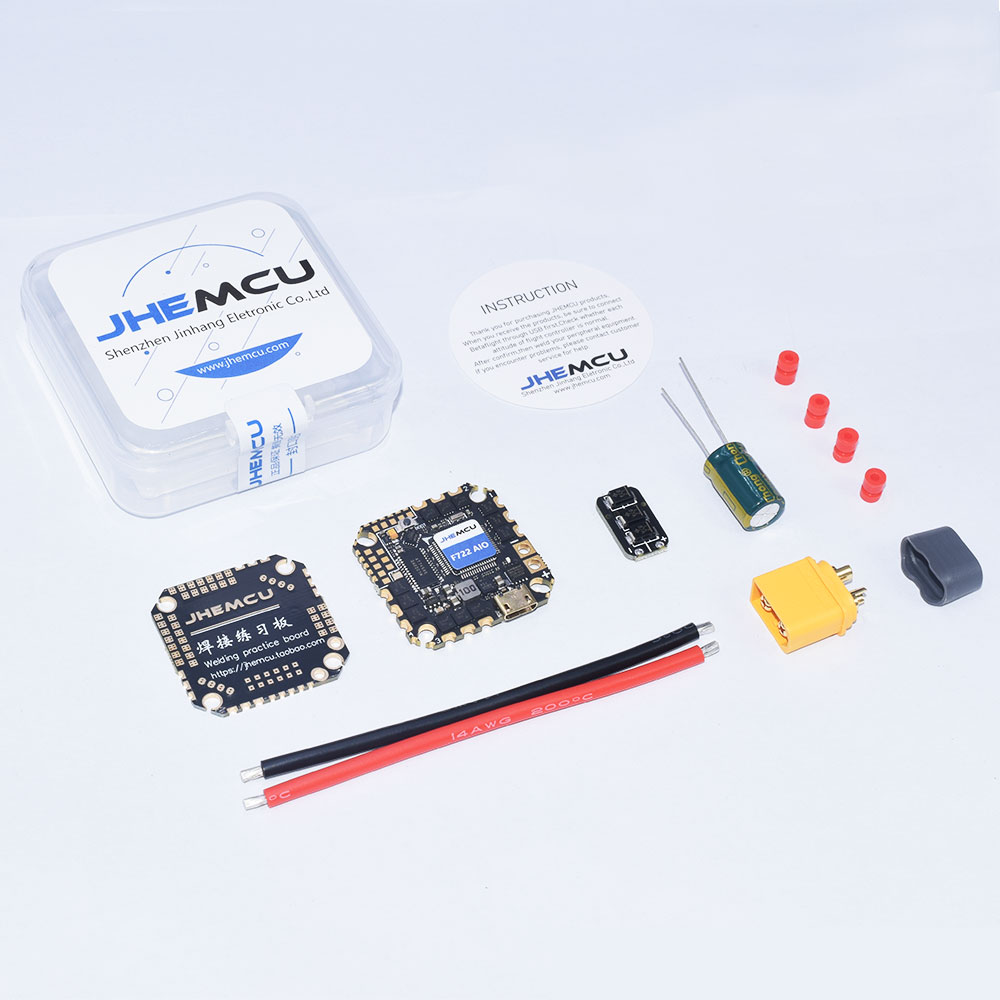

Package Includes:
1x GHF722AIO ICM Board
1x Soldering Practice Board
1x Red Cable
1x Black Cable
1x Capacitor
4x Rubber shock absorber
1x Connector
