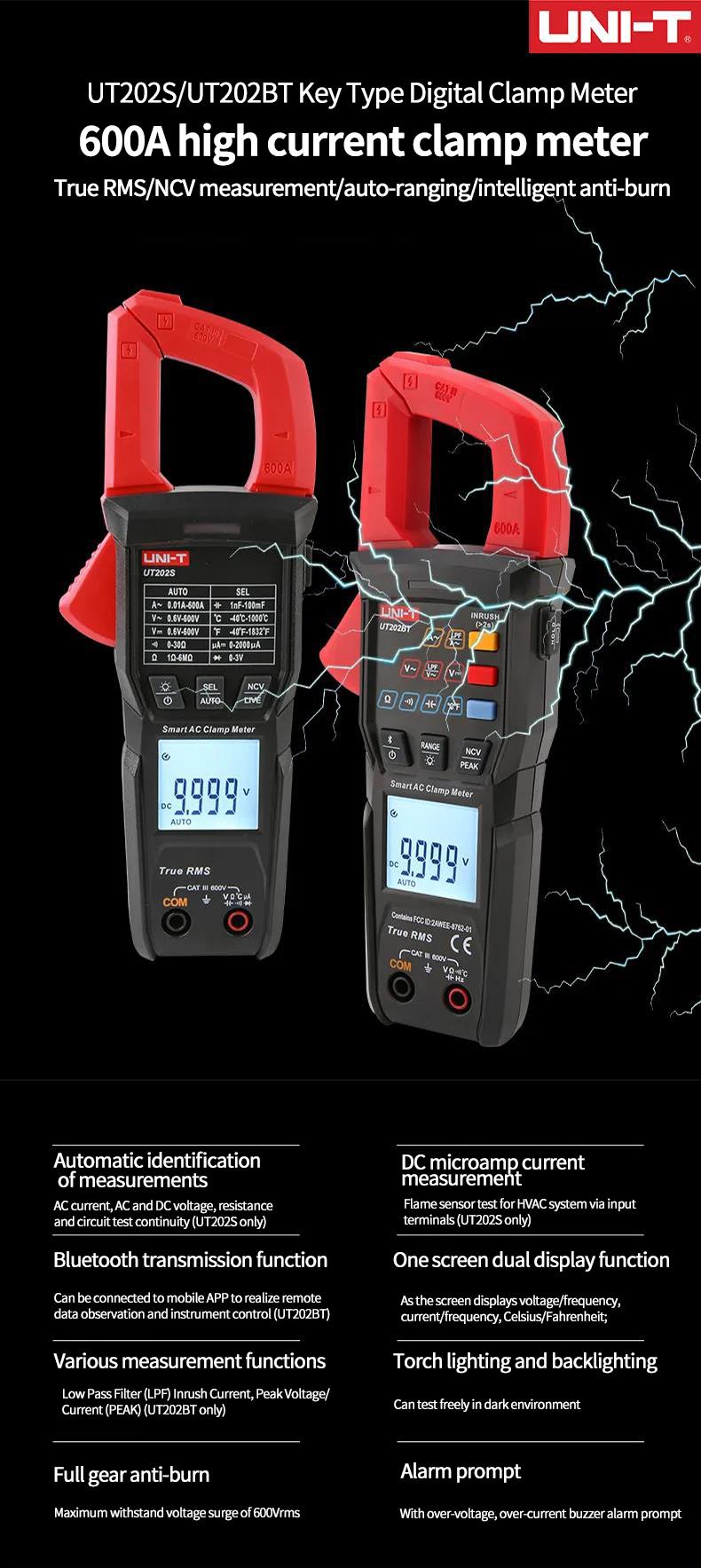

UNI-T New Digital Clamp Meter UT202BT Bluetooth Connection 600A AC/DC Current Voltage 9999 Counts TRMS NCV Ammeter Tester
Product Description
UT202BT AC Clamp Meter

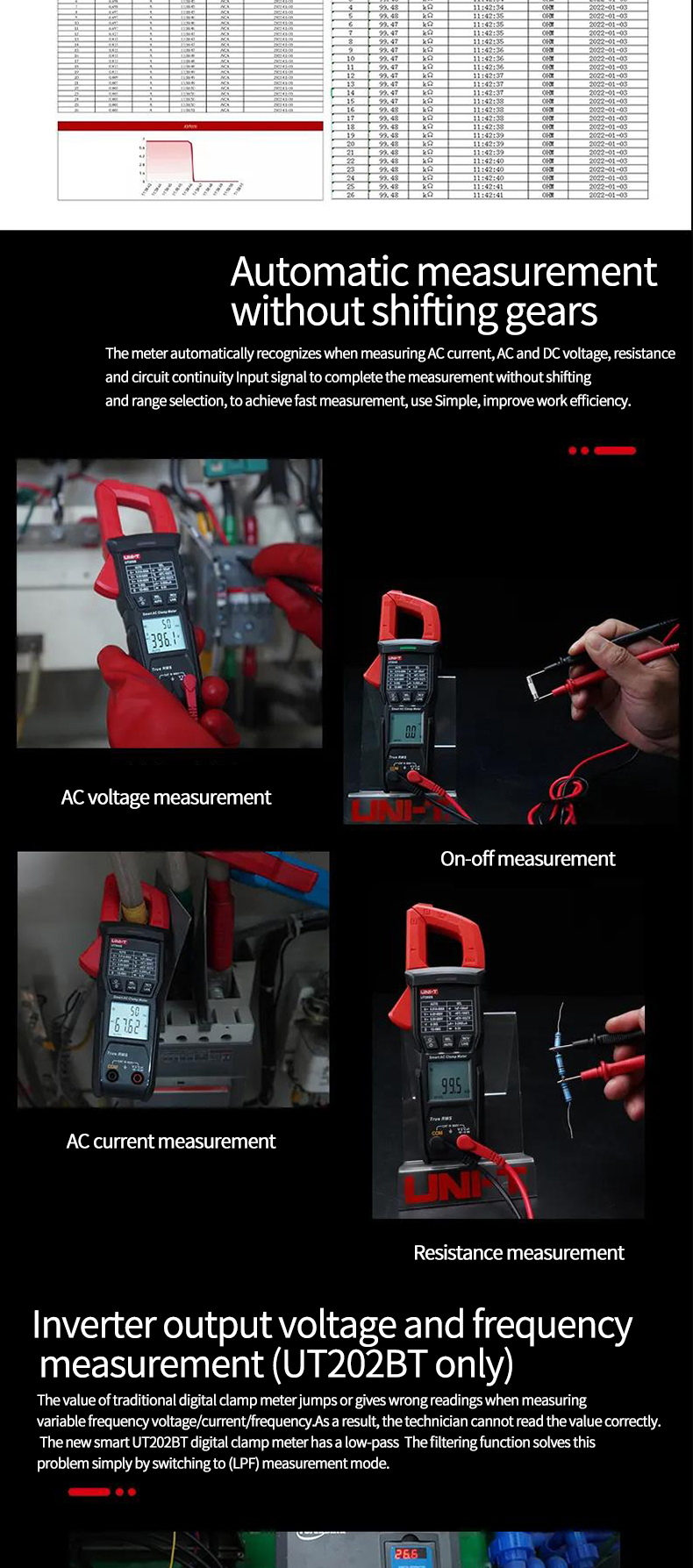

UT202BT is a handheld true RMS digital clamp meter with stable performance, novel structure, high reliability and high safety. Full-featured automatic range, 9999Counts display digits, superior performance. The UT202BT measures AC/DC voltage, AC current, low-pass filtered voltage/current, inrush current, peak voltage/current, resistance, circuit continuity, capacitance, temperature, and non-contact AC voltage sensing (NCV). At the same time, it has Bluetooth function, which can be connected to mobile APP to realize remote data observation and instrument control.

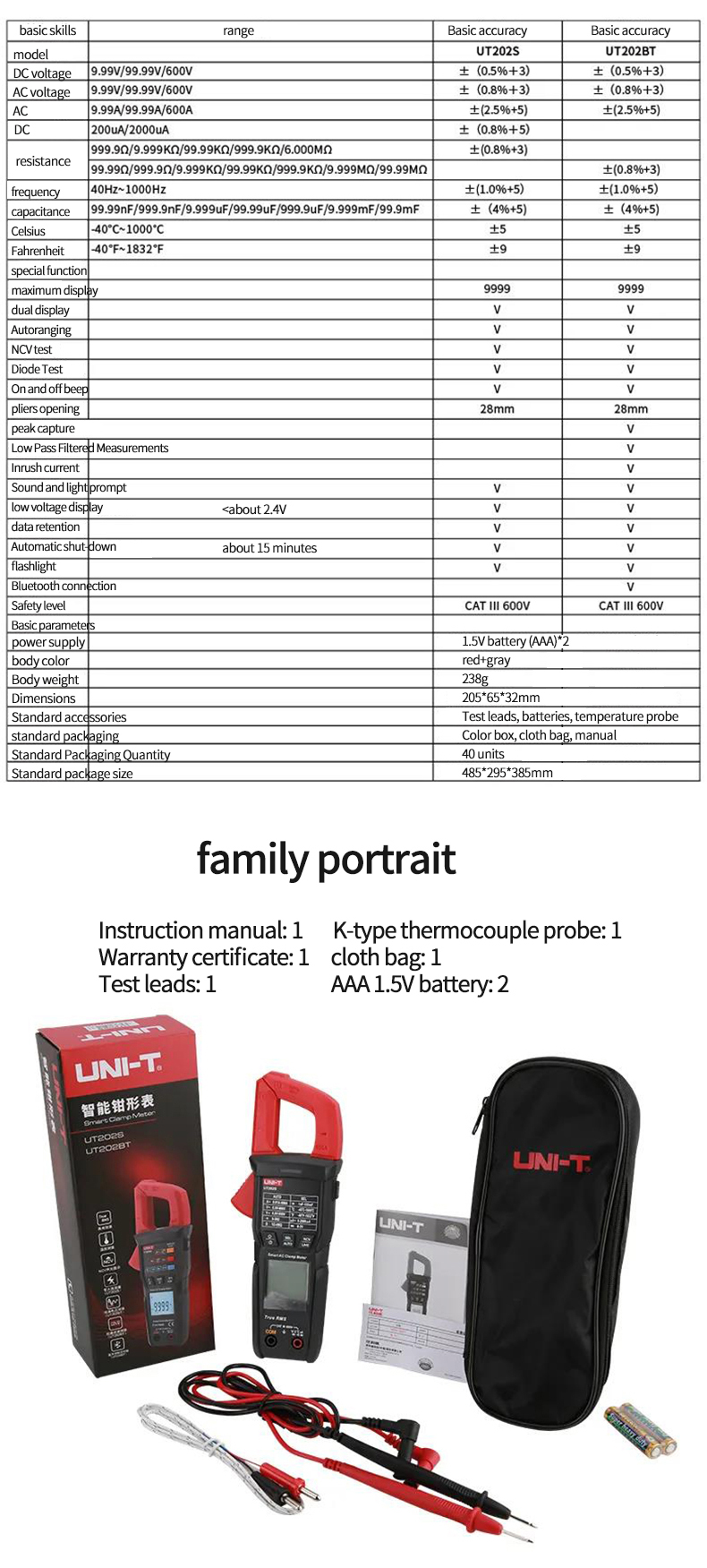

Specifications | Range | UT202BT |
DC voltage (V) | 600V | ±(0.5%＋3) |
AC voltage (V) | 600V | ±(0.8%＋3) |
AC current (A) | 600A | ±(2.5%+5) |
DC current (A) | 2000UA | |
Resistance (Ω) | 6MΩ | |
100MΩ | ±(0.8%+3) | |
Frequency (Hz) | 40Hz~1000Hz | ±(1.0％+5) |
Capacitance (F) | 100mF | ±(4%+5) |

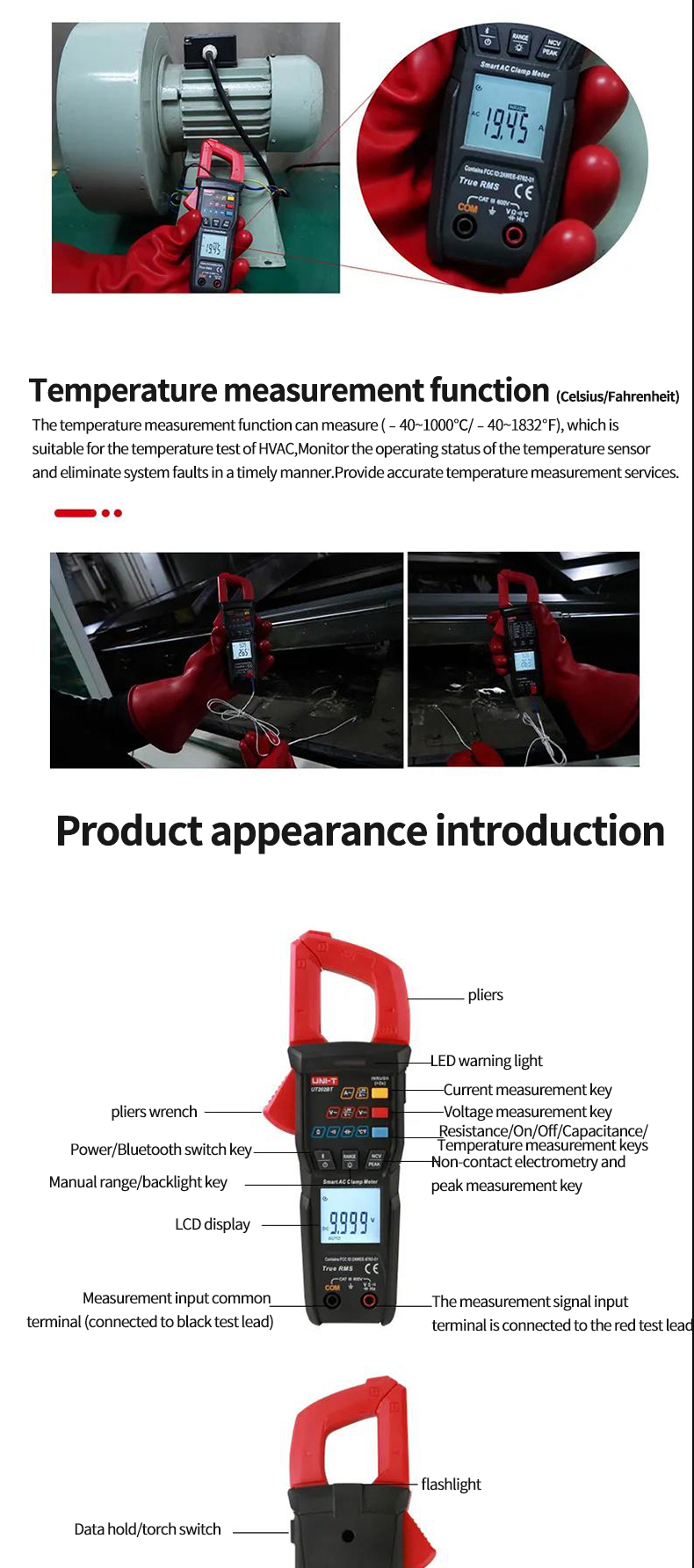

Temperature (℃/℉) | -40℃~1000℃/-40℉~1832℉ | ±5/±9 |
Features | ||
Jaw opening | 28mm | |
Display count | 9999 | |
Dual display | √ | |
Auto range | √ | |

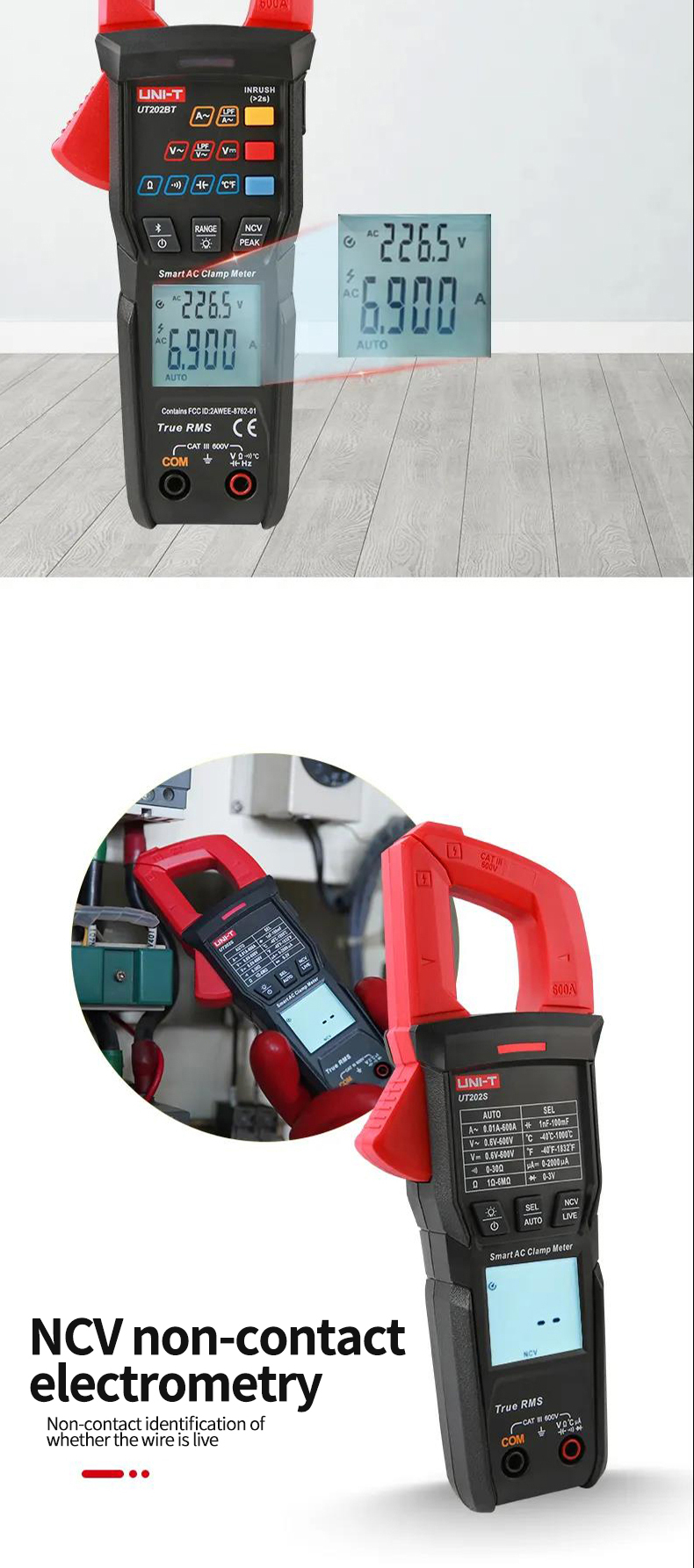

NCV | √ | |
Continuity | √ | |
PEAK hold | √ | |
Low pass filter | √ | |

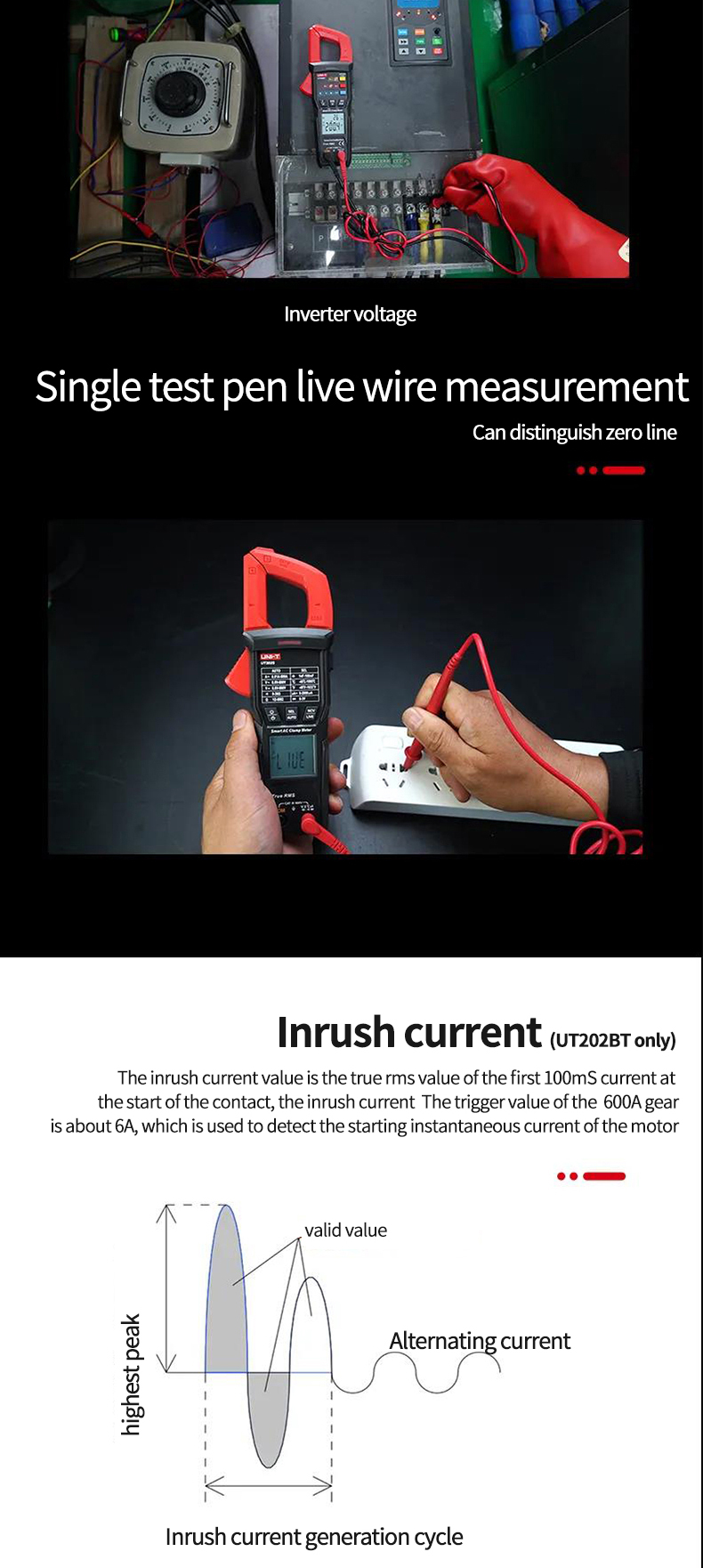

Inrush current | √ | |
Audible visual indication | √ | |
Low battery indication | ＜2.4V approximately | √ |
Data hold | √ | |
Auto power off | Approximately 15 minutes | √ |
Flashlight | √ | |
Bluetooth | √ | |
Safety rating | CAT Ⅲ 600V | |
General Characteristics | ||
Power | AAA 1.5V x 2(No include） | |
Product color | Red+Gray | |
Product size | 201.5 x 47 x 28mm | |
Standard accessories | Test leads,temperature probe | |
Features:

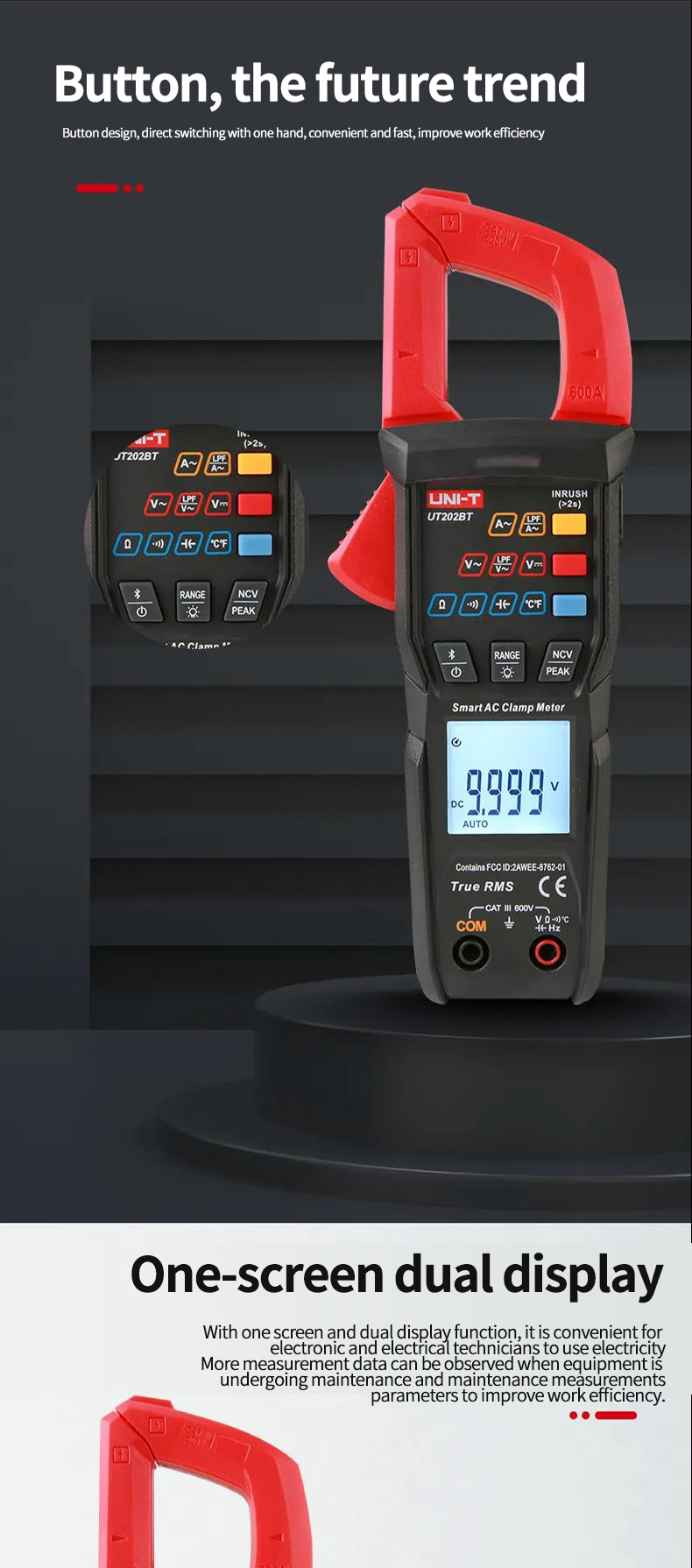

1. Button-design clamp meter
2. One-handed operation and easy to use
3. 9999 counts
4. Jaw opening: 28mm
5. 600V DC AC voltage measurement
6. 600A AC current measurement
7. Temperature measurement
8. Dual display: V+HZ and A+HZ

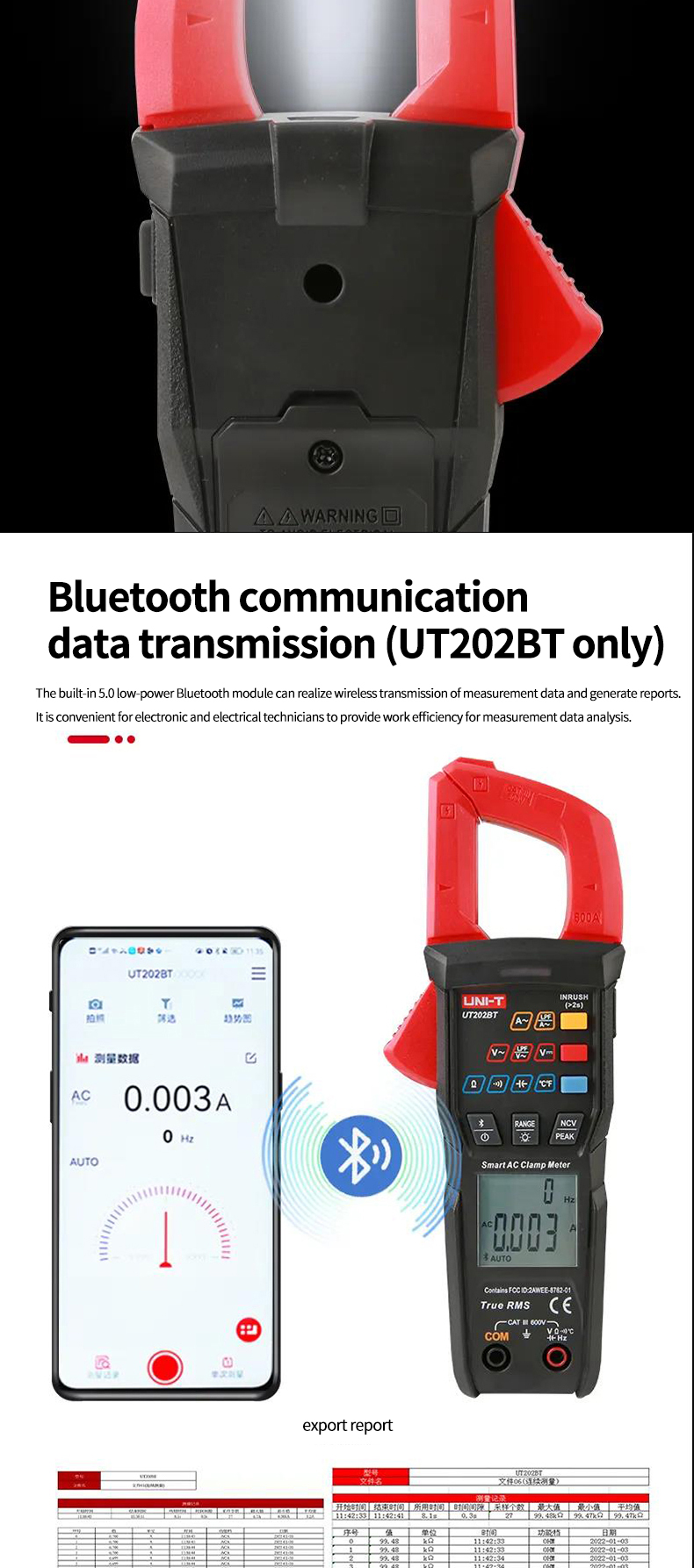

9. Bluetooth 5.0 (UT202BT only)
10. Inrush current measurement (UT202BT only)
11. Low pass filter measurement (UT202BT only)

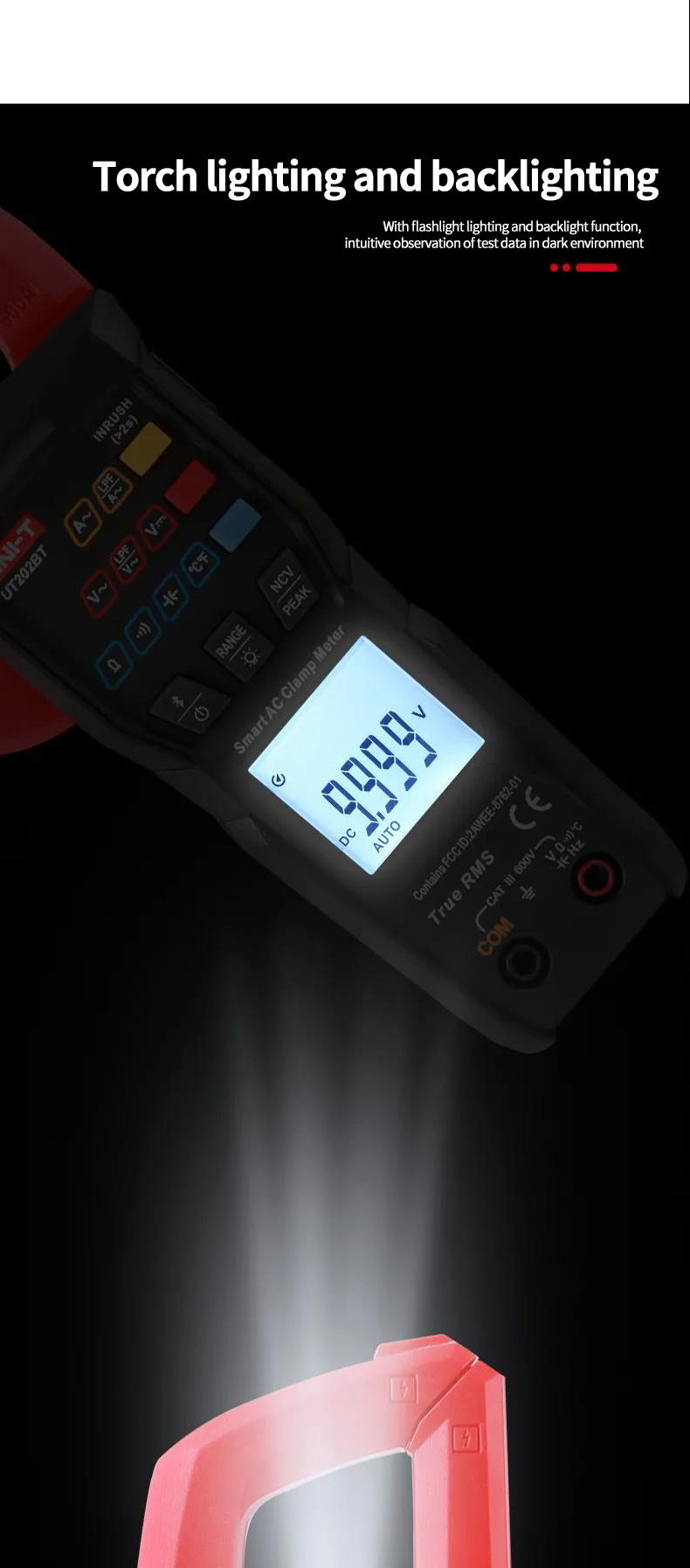

12. Bright backlight / Flashlight
13. Non-contact voltage (NCV)
14. CAT III 600V
Package included:
1 x UT202BT (NO BATTERY INCLUDED)
1 x Test Leads
1 x Temperature Probe
1 x Cloth Bag
1 x Manual
