APEX HD 5 Inch 225mm Carbon Fiber Frame Kit 5.5mm Arm for DIY FPV Freestyle RC Racing Drone
Your shopping cart is empty!
Product Description

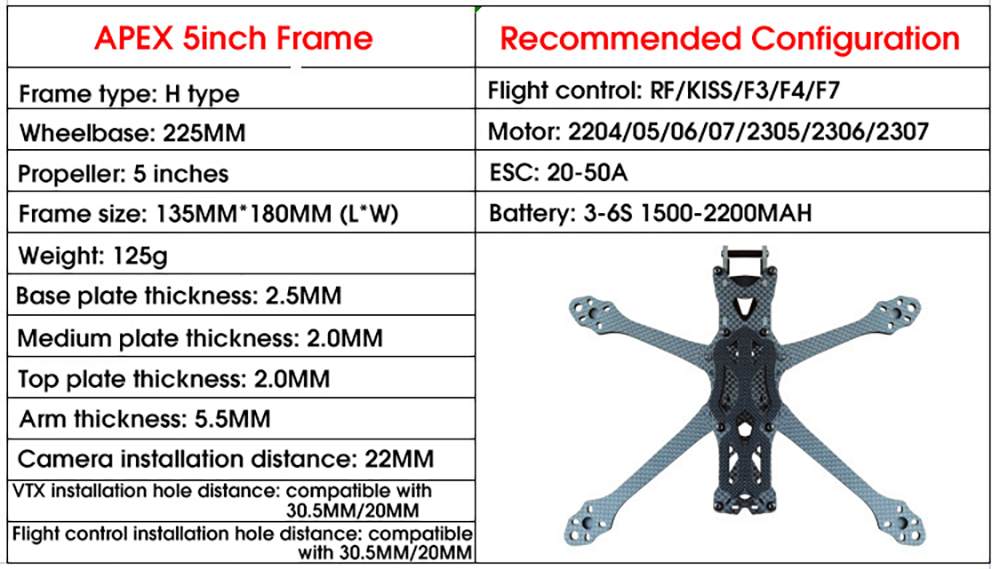

Specifications:
Model: APEX 5
Version | 5 inch |
Frame type | H type |
Wheelbase | 225MM |
Propeller | 5 inches |
Frame size | 135MM*180MM (L*W) |
Weight | 125g |
Base plate thickness | 2.5MM |
Medium plate thickness | 2.0MM |
Top plate thickness | 2.0MM |
Arm thickness | 5.5MM |
Camera installation distance | 22MM |
VTX installation hole distance | compatible with 30.5MM/20MM |
Flight control installation hole distance | compatible with 30.5MM/20MM |
Recommend Parts: ( NOT Included)
Flight controller : 20x20mm OR 30.5x30.5mm F4 / F7 Flight Controller
Brushless Motor: 2204/ 2205 / 2206 / 2207 / 2305 / 2306 / 2307 ( 16x16mm OR 19x19mm Mounting Hole)
ESC: 20-50A
Battery: 3-6S 1500-2200mAh Lipo
The Following Parts are Compatible: ( NOT Included)
FC & ESC | 20x20mm SpeedyBee F405 Mini F4 FC & 35A BL_S 4IN1 ESC | 30.5mmx30.5mm MAMBA F405MK2 V2 F4 FC & F40MK2 40A / F50 50A ESC |
Brushless Motor | iFlight XING-E Pro 2306 1700KV | T-Motor VELOX V3 V2207 2550KV 4S |
Propelller | HQ Freestyle Prop 5X4.3X3V2S 5043 3-Blade | HQProp Ethix S3 Watermelon 5031 |
VTX | HGLRC Zeus VTX PRO 5.8G 40CH 1.6W | GEPRC 2.5W VTX |
Lipo Battery | ZOP Power 22.2V 1500mAh 100C 6S | CNHL Black Series 4S 14.8V 1500mAh 100C |

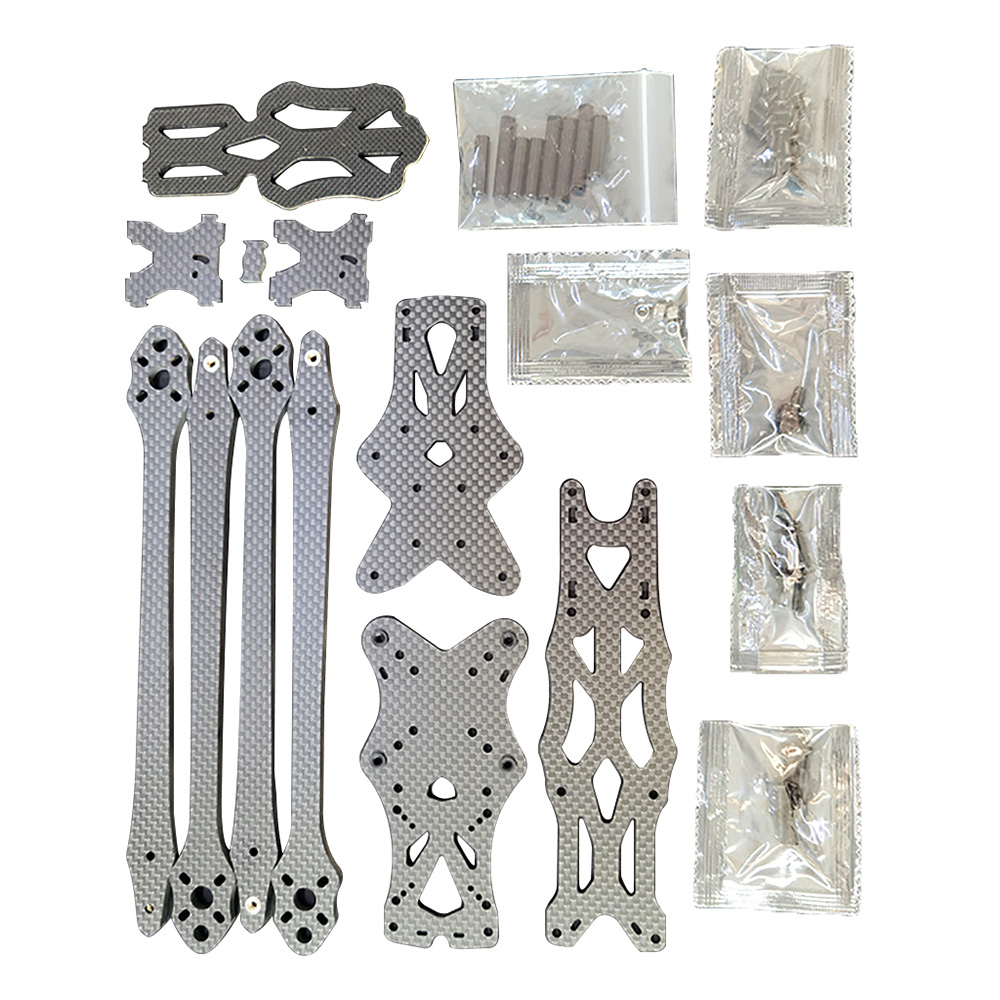

Package Included:
1x Frame Kit
