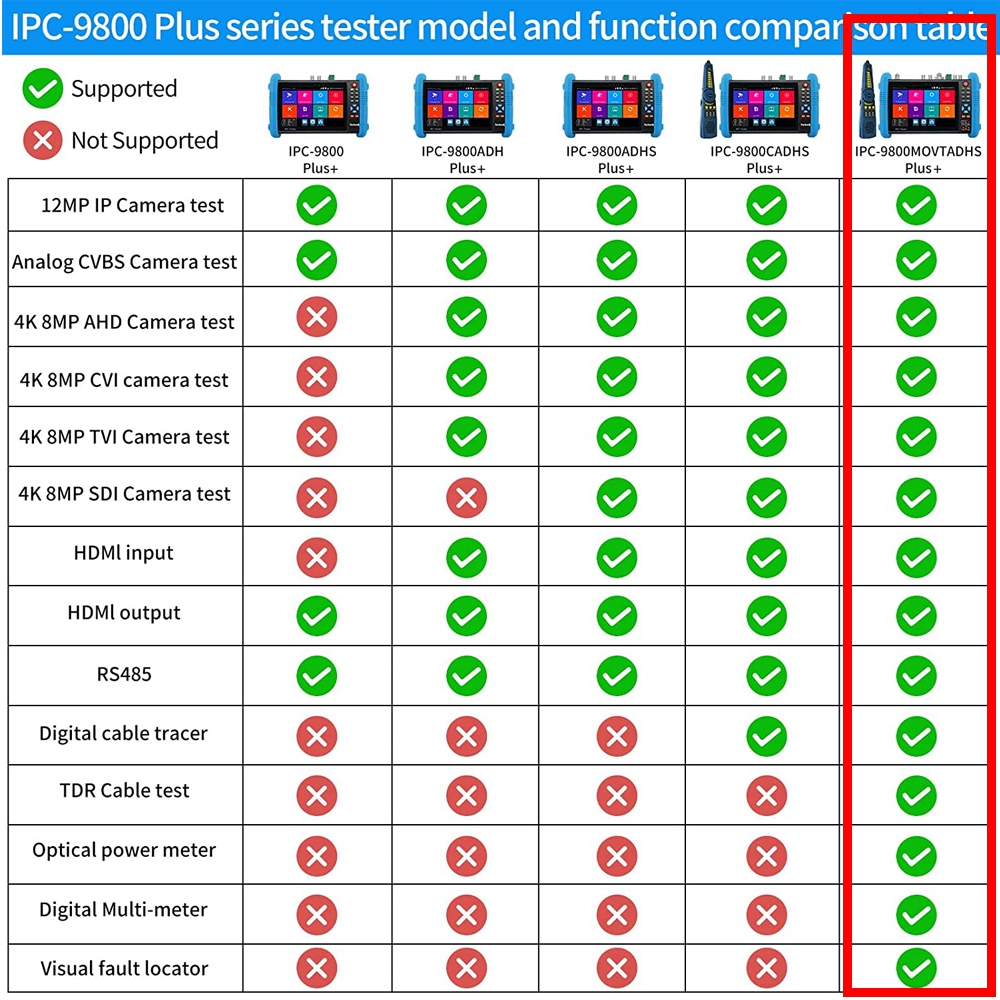

IPC-9800MOVTADHS Plus+ Full Features

Feature:

【IP Camera Tester】 HD camera tester support max 12MP 4K /H.265/H.264 IP camera test. Rapid Video Auto view the video, create testing report. IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK. Hik test tool(pressing just one key to activate Hik camera , Image test, modify the user name, PW and IP parameters). DH test tool (DH camera test, modify the username, PW and IP parameters).Create WIFI hotspot,analyzer.

【HD Coaxial Camera Test & Cable Tracer】Max 8MP TVI/AHD/CVI/EX-SDI,HD-SDI,3G-SDI camera test and also support CVBS camera test,NTSC/PAL(Auto adapt).Analog level test,Built-in "Auto HD" APP can automatically recognize the camera type.Support Coaxial UTC control & call OSD menu,RS485 control,compatible with more than 30 protocols such as for PELCO-D/P etc. With Cable tracer, can quickly find out the target cable(BNC cable, network cable and telephone cable) from the mess cables.

【DMM&OPM&VFL&TDR Test】Digital Multimeter---DC and AC voltage measurement,Resistance measurement,Continuity test,Diode measurements,Capacitance measurement.Optical Power Meter---Calibration wavelength:1625nm,1550nm,1490nm,1310nm,1300nm,850nm. Red Visible Laser Light Source---Laser type:LD;Calibration wavelength:650nm;Output power:10mW;Modulation mode: CW/1Hz/2Hz;Measuring range 8000 meter;Connector:Active FC/PC;TDR cable Breakpoint Test---Measurable metal cable’s length and short circuit.

【Battery & Quality Assurance】Built-in 7.6V/7800mAh/59.28Wh battery.DC5V/2A,12V/3A,24V/2A,48V POE power output.After charging 4 hours, normal working time 15 hours.Tester Dimension/Net weight 9.4 x 5.3 x 1.4 inch/0.94kg(2.31lbs).

Specification:

Model: IPC-9800MOVTADHS plus+.

Functions:

1. 7 inch IPS touch screen

2. 1280*800 resolution.

3. Support Digital Multimeter

4. Optical power meter

5. Visual fault locator

6. TDR cable test and Support H.265, H .264, 4K,OVIF, PoE, WiFi, 10/100/1000M Ethernet, RS485, Audio in, LED lamp

Battery Capacity: 7500mAh

Color: Black

Compatible Devices: PC

Connector Type: HDMI

SUPPORT CAMERA TYPE

IP camera test:

Max 12MP 4K H.265/H.264 IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, ovif test tool etc.

Coaxial HD camera test:

Max 4K 8MP TVI/AHD/CVI/SDI camera test, 3840 x 2160P, support coaxial PTZ control & call OSD menu.

CVBS camera test:

1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. Such as PELCO-D/P etc.

AXIS IP cameras test：

Install the APP "Axs test tool" suitable for AXIS testing through automatic update before testing.

Digital Multi-meters

DC voltage measurement(V): the highest range is 660V, the accuracy is ±(0.3%+4), the resolution is 100mV

AC voltage measurement(V): the highest range is 660V, the accuracy is ±(0.8%+6), the resolution is 100mV

DC current measurement(A): the highest range 10A, accuracy ±(1%+5), resolution 10mA

AC current measurement(A): the highest range is 10A, accuracy is ±(1%+5), resolution is 10mA

At the same time, the tester's multimeter can also measurement resistance, diode, capacitance measurement and continuity testing. Automatically adjust 0.

Optical Power Meter and Red Visible laser light source

Optical Power Meter

Detector type: InGaAs; Calibration wavelength: 1625nm, 1550nm, 1490nm, 1310nm, 1300nm, 850nm; Power measurement range (dBm): -70 to +10; Measurement accuracy: <±3%dB (-10dBm, 22℃), <±5%dB (full scale, 22℃); Display resolution: Linear display 0.1%, logarithmic display 0.01dBm; Connector: Active FC/PC; Working temperature: -10℃ to +50℃(14℉~122℉); Storage temperature: -20℃ to +70℃(-4℉~158℉)

Red Visible laser light source

Laser type: LD; Calibration wavelength: 650nm; Output power: 10mW; Modulation mode: CW/1Hz/2Hz; Measuring range 8000 meter; Connector: Active FC/PC; Working temperature: -10℃ to +50℃(14℉ to 122℉); Storage temperature: -20℃ to +70℃(-4℉ to 158℉)

TDR Breakpoint Test (Hardware Support)

TDR cable Breakpoint Test

Quickly measure the length of power, BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s over a distance of up to1200 meters. Detects cable whether it is unblocked and locates breakpoints precisely.

With the attached cable tester tool, you can test the arrangementtype of the network cable and whether it is unblocked.

Package included:

1 x Tool Bag

1 x Power adapter

3 x Shoulder Strap

1 x TDR test cable

1 x Wire Finder

1 x Power output cable

1 x BNC video cable

1 x RS485 control cab

1 x Multimeter Test cable

2 x Fiber Optic Test Adapters

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
