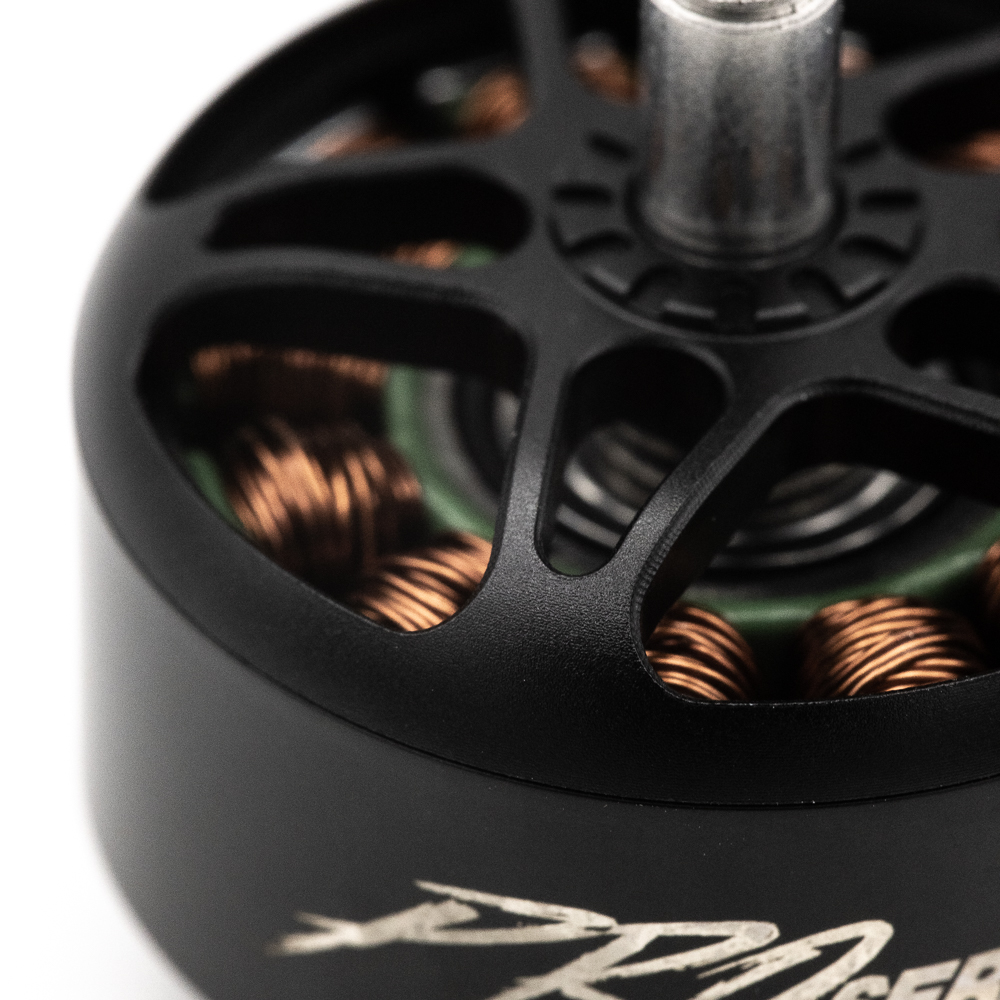

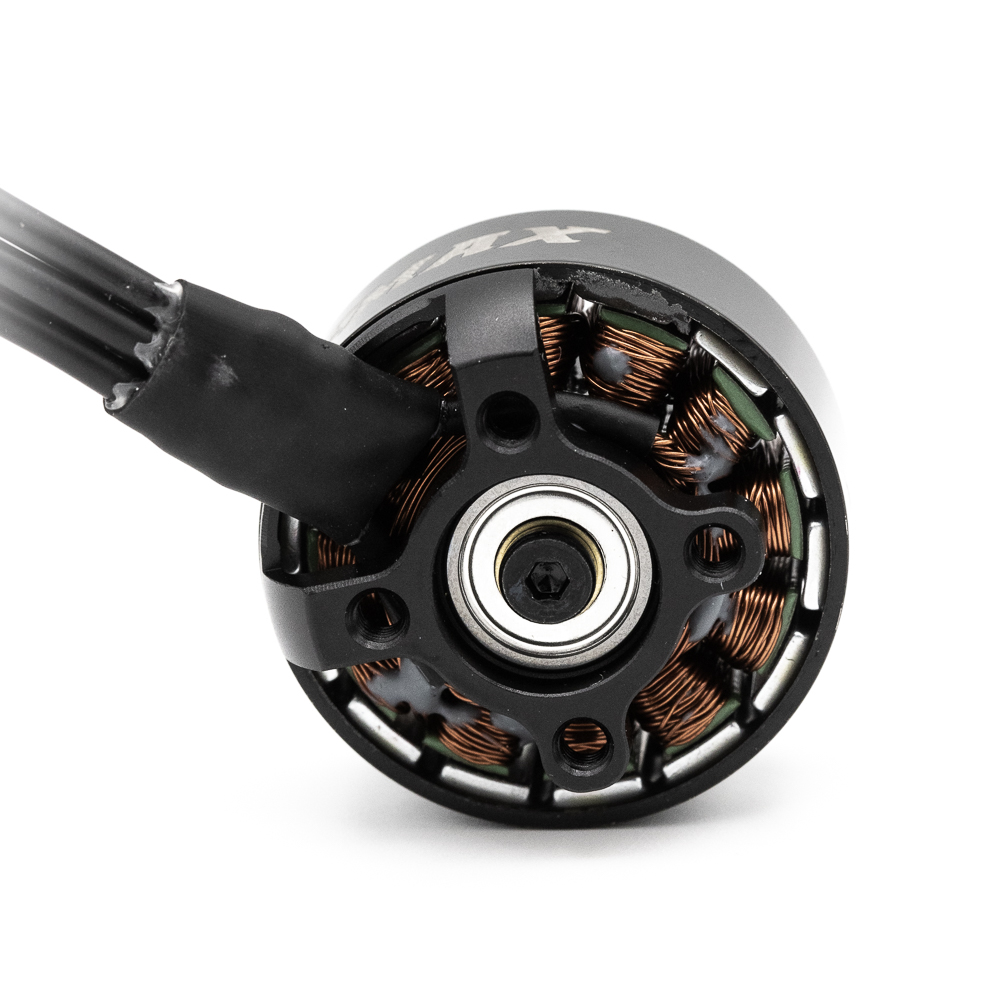

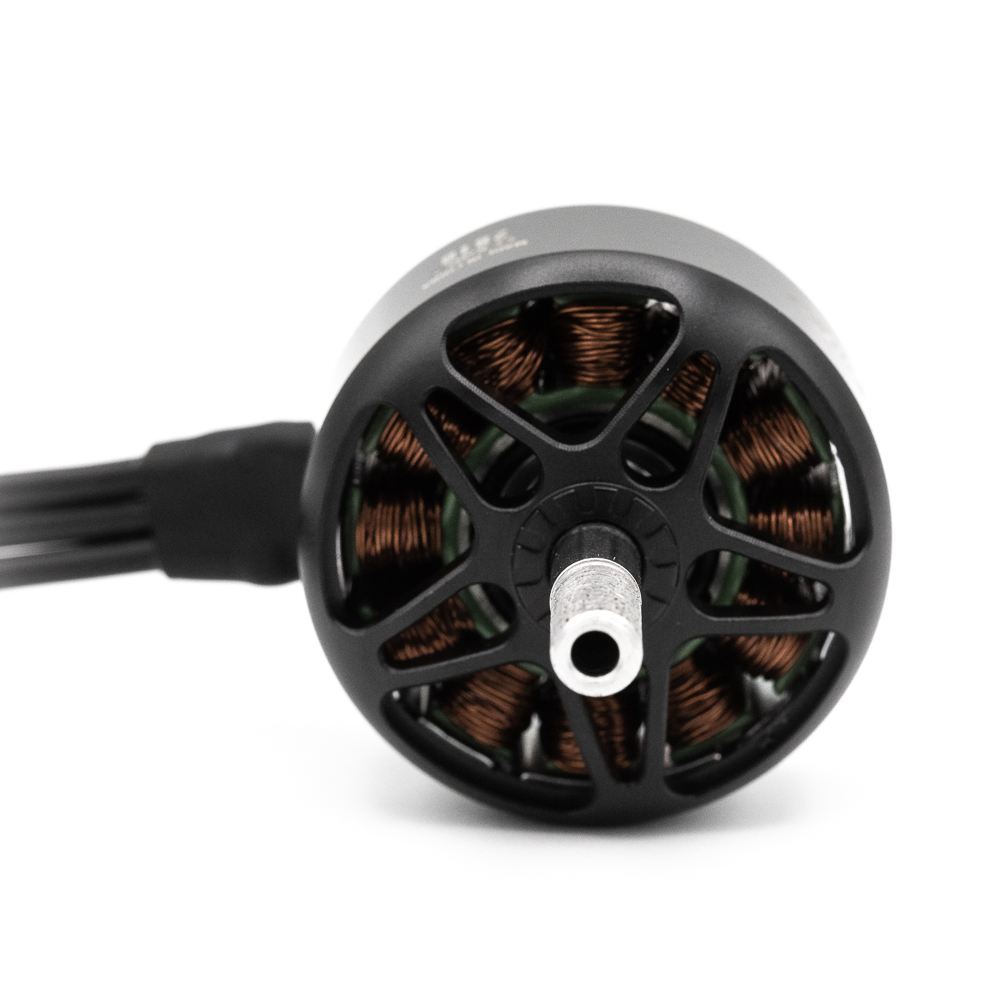

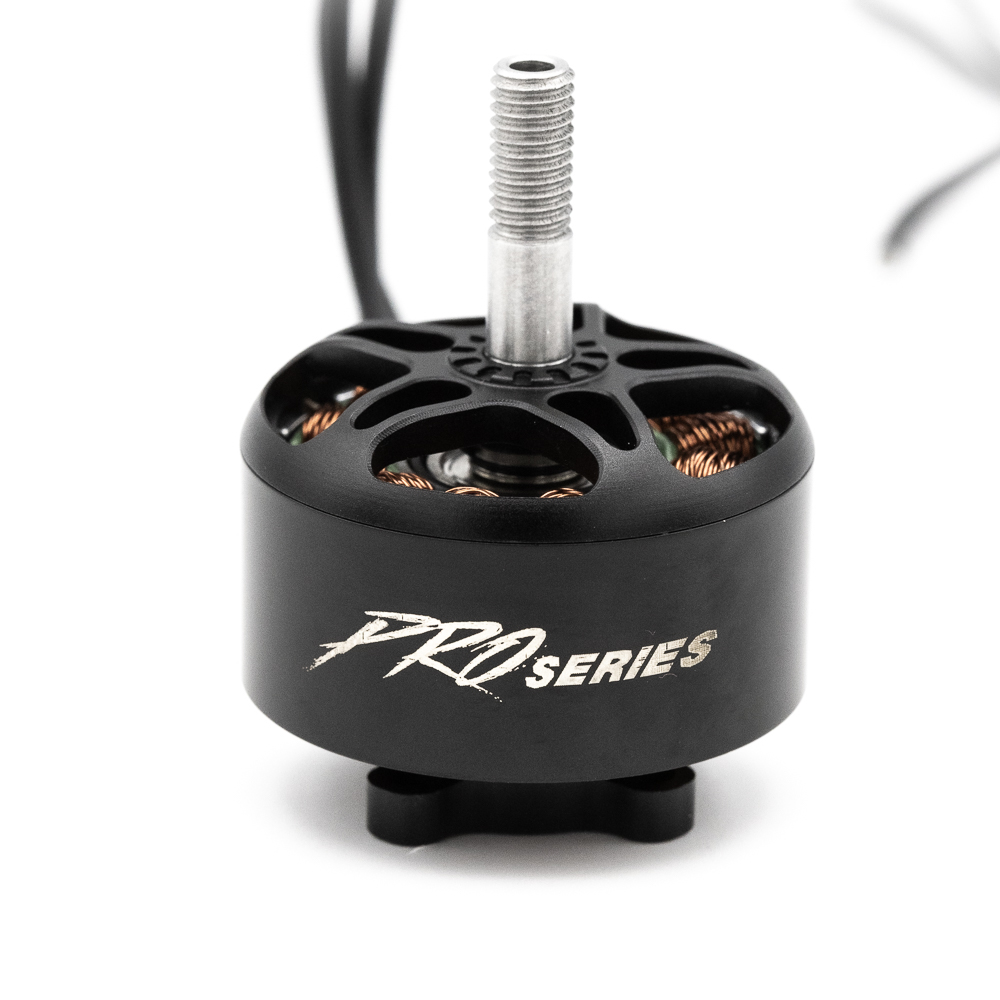

EMAX Pro Series 2812 930KV 1100KV 3-6S Brushless Motor for 7Inch 8Inch 9 Inch Long Range FPV RC Racing Drone
Product Description
Specifications:
Brand: EMAX
Model: Pro 2812
Optional KV: 930KV / 1100KV
Shaft Thread: CW
KV | 930KV | 1100KV |
Configuration | 12N14P | 12N14P |
NO. of Cells | 3-6S | 3-6S |
Shaft Diameter | 5mm | 5mm |

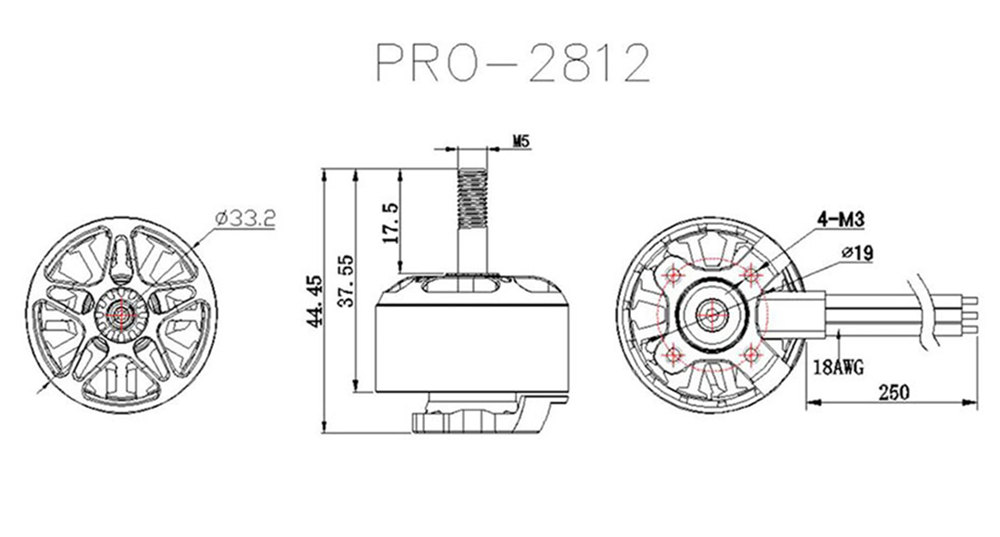

Dimension | 33.2x44.45mm | 33.2x44.45mm |
Weight | 71.6g (W/O wire) | 71.6g (W/O wire) |
Silicone Wire | 18AWG, 250mm | 18AWG, 250mm |
Internal Resistance | 58mΩ | 46mΩ |
Idle Current (10V) | 1.3A | 1.7A |
Peak Current (6S) | 45A | 50A |
Max. Power (6S) | 1130W | 1260W |
Recommend Propeller | 8-9 Inch | 7-8 Inch |
Features:
1. Efficient Power: The EMAX PRO 2812 motor provides high power output for improved performance.
2. Smooth Operation: The brushless motor ensures smooth and noiseless operation, enhancing the overall flying experience.
3. Wide Compatibility: Compatible with a variety of RC aircraft, making it suitable for both beginners and experienced flyers.
4. Durable Construction: Made with high-quality materials, the motor is built to withstand continuous use and resist wear and tear.
5. Easy Installation: The motor is easy to install, allowing for hassle-free integration with your RC model.
Package Includes:
1x EMAX Pro 2812 Motor
5x M3*10 Screw
5x M3*8 ScreW
1x Aluminum M5 nylock nut
1x Washer and Screw for shaft
