Note: USB cable black or white will be shipped randomly.

Description:
Specifications :
Firmware:V1.2 (firmware update via Flipsky ESC Tool supported)
Voltage:14-84V (safe for 4S-20S)
Continuous Current:100A / Single; 200A / Dual (values depend on the mounting and ambient temperature around the device!)
Peak Current:250A / Single; 500A / Dual
Communication Ports:USB, CAN, UART, PPM, ADC
Input Signals Support:PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present)
Startup Modes Support:IPDS (sensorless), HFPI (sensorless), HALL (sensored)
BEC:5V@1A
Multiple Speed Gear levels:Low, Medium, High, Reverse
Front Lights, Rear Brake Lights & Horn: Support
Programmable:Yes
Regenerative Capacity:Yes
Slide Poweron & Auto shutdown:Yes
Self-resetting switch with green LED button Diameter:16mm
Power Wire Size:10AWG; Motor Wire Size: 12 AWG

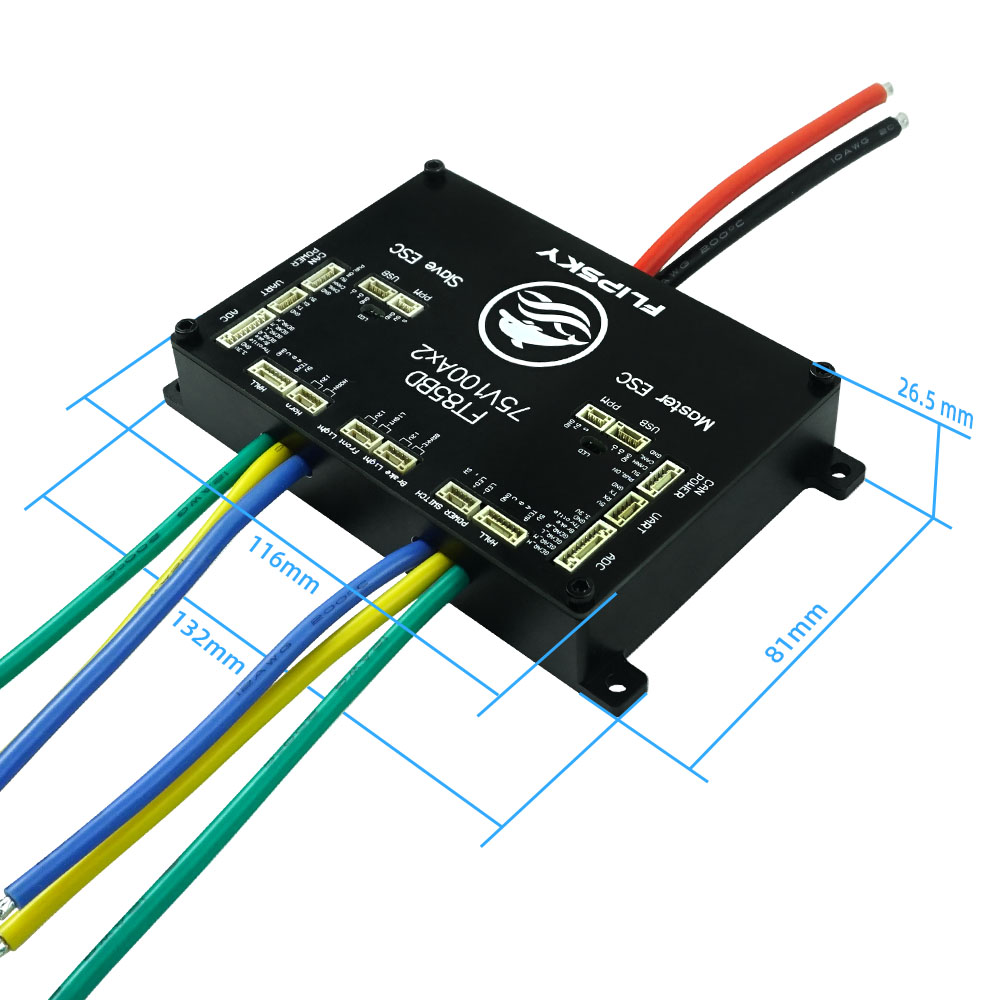

Size:L132*W81*H26.5mm(Including Alu. Case)

Features:
1.Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed.
2.240MHz and the max PWM switching frequency 45KHz improves the motor RPM.
3.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.
4.Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.2.1 or above).
5.Supporting motor FOC with low working noise and smooth starting.
6.Supporting Real-time data and fault alerts.
7.Supporting adaptive variable PWM frequency control.
8.Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).
9.Supporting control types: Current, Duty Cycle
10.Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection.
11.Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via ESC TOOL.
12.Supporting extra interface like front lights, rear brake lights and horn fixtures.

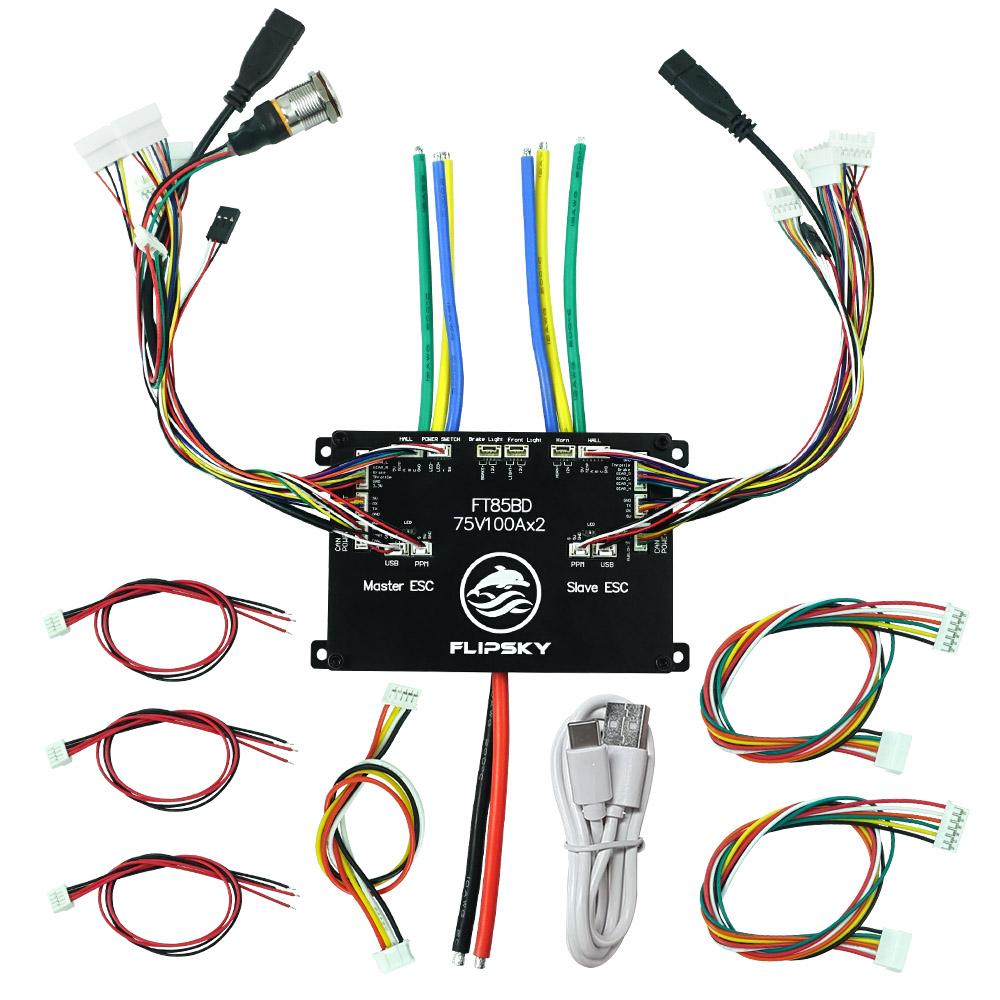

Package Included:
1X Flipsky FT85BD ESC

1X USB Cable

1X Wires Set

Wiring diagram:
