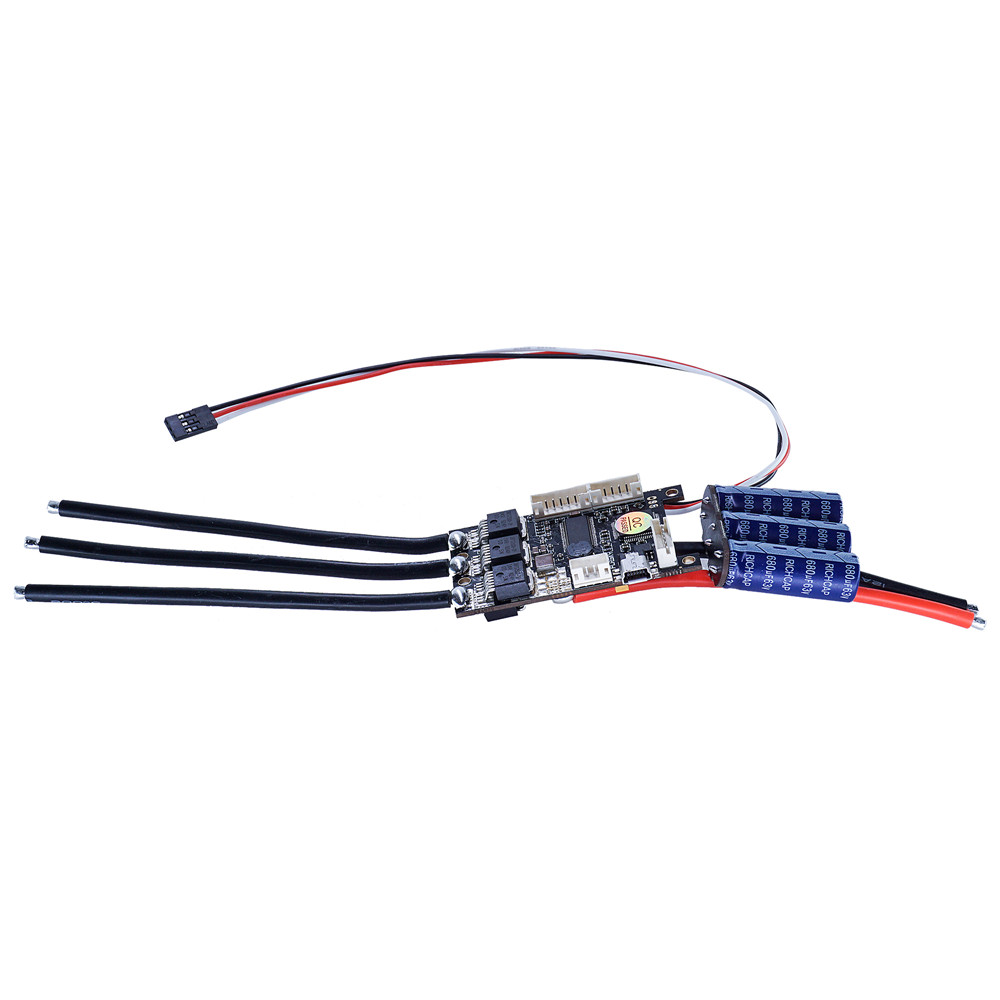

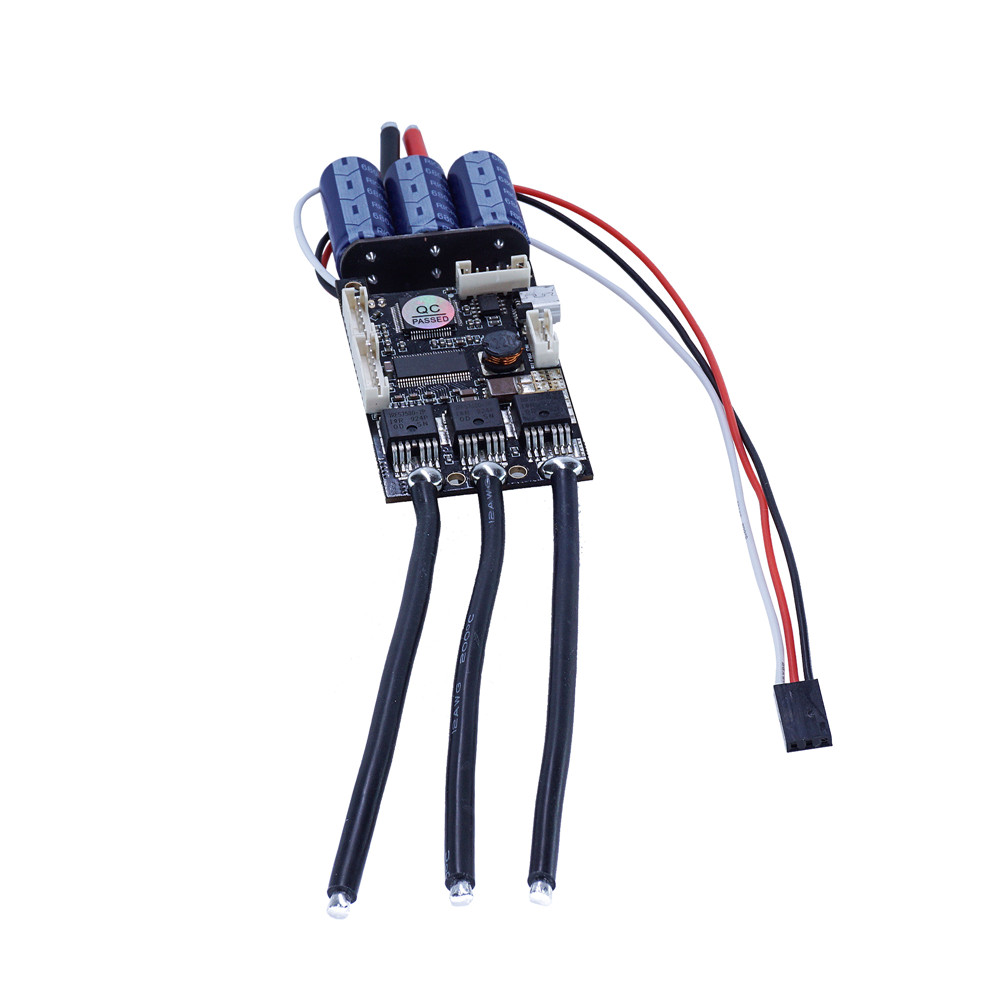

Flipsky FSESC 4.12 50A SK8 ESC 5V/1.5A BEC Electric Longboard RC Car/E-bike/E-scooter
£179.98
Ex Tax: £179.98
Product Code: 1293459
Stock In Stock
Product Description
Description:
Item Brand:FLIPSKY
Item name:50A SK8-ESC
Specification:
Application:for electric longboard/RC Car/E-bike/E-scooter
Motor supported:sensor & sensorless brushless motor
1X 50A SK8-ESC
Item Brand:FLIPSKY
Item name:50A SK8-ESC
Weight: 124g,with packaging
Size: 60x40x20mm
Packaging size:21*15*4cmSpecification:
Application:for electric longboard/RC Car/E-bike/E-scooter
Motor supported:sensor & sensorless brushless motor
Hardware:V4.12
Firmware: V3.38
Amps: 50A continuous / 240A
Cells: 3-14S LiPo
Voltage: 8V-60V
BEC: 5V@1.5A
BEC type: Internal driver support
Timing: Software calibration
Cutoff Voltage: Programmable
Frequency: PWM input
Governor: No
Programming card: No
Reverse: No
For more information you can click here

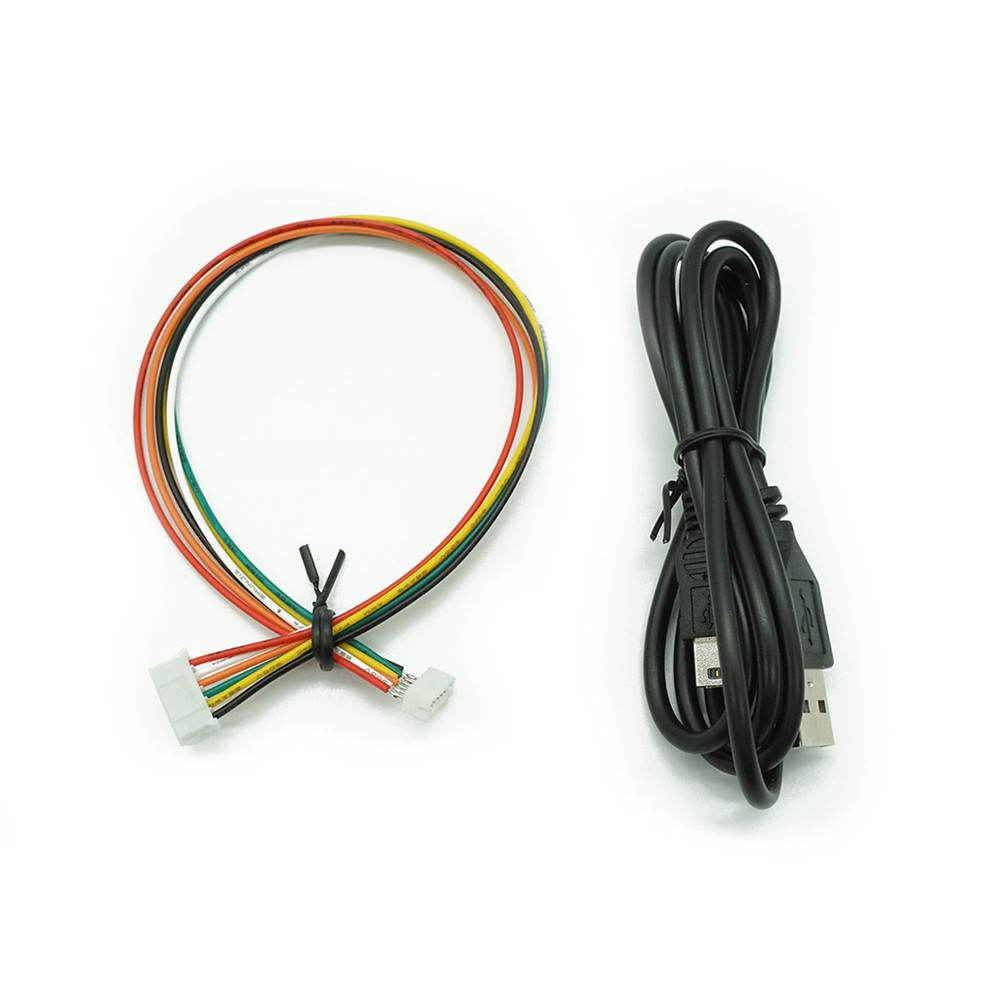

Package included:For more information you can click here
Due to two phase design, the ESC has strict requirement on parameter setting. If not match well, it will cause over-current cut off during hard brake or hard accelerate for about 0.2s, but after 0.2s it will recover the power.
Here’s our suggestion for the setting , it’s verified no such problem in this setting.
10S battery
Motor Current Max:30.00A
Motor Current Max Brake:-25.00A
Absolute Maximum Current:130.00A
Slow ABS Current Limit:True
Battery Current Max:30.00A
Battery Current Max Regen:-25.00A
DRV8301 OC Mode:Current Limit
DRV8301 OC Adjustment:16
Or:
Here’s our suggestion for the setting , it’s verified no such problem in this setting.
10S battery
Motor Current Max:30.00A
Motor Current Max Brake:-25.00A
Absolute Maximum Current:130.00A
Slow ABS Current Limit:True
Battery Current Max:30.00A
Battery Current Max Regen:-25.00A
DRV8301 OC Mode:Current Limit
DRV8301 OC Adjustment:16
Or:
10s4p 30q Battery Pack
Motor Current Max : 30A
Motor Current Max Brake : -30A
Battery Current Max : 50A
Battery Current Max Regen : -40A
Absolute Maximum Current : 120A
1X 50A SK8-ESC
