Description:

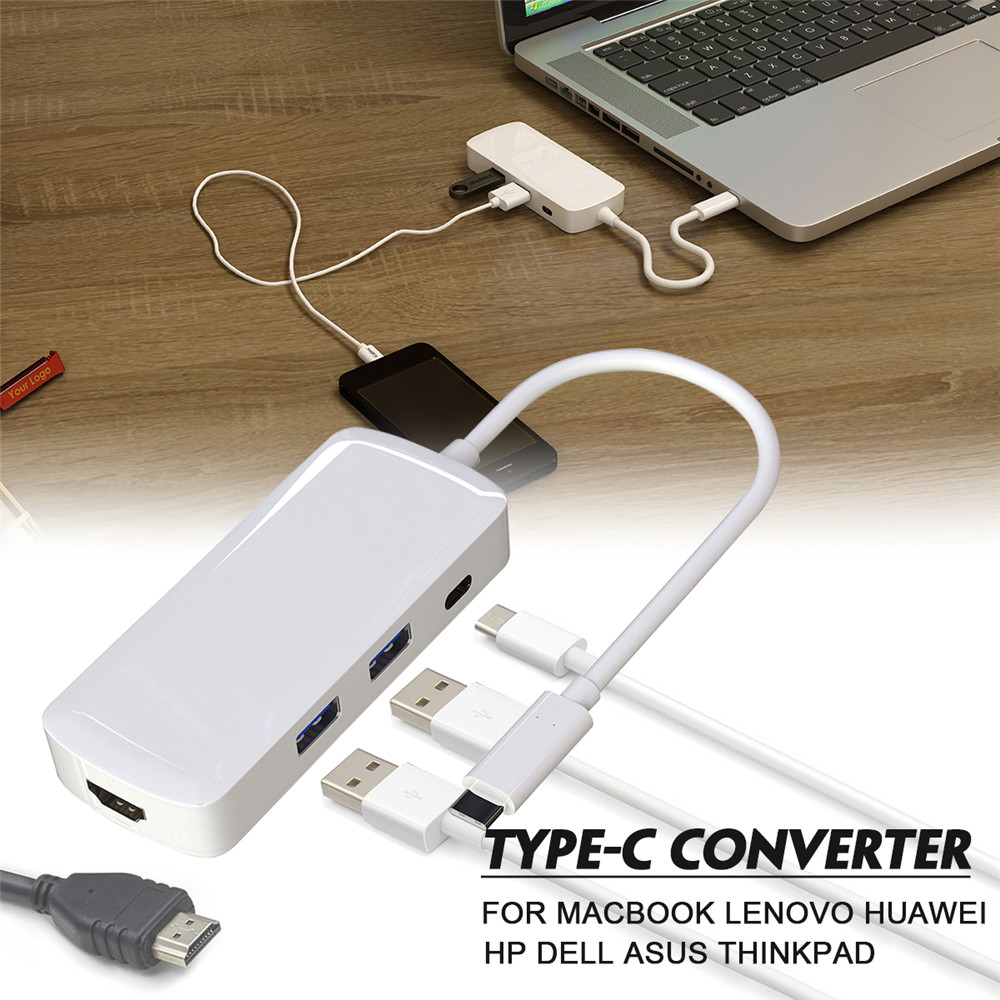

USB-C/M to HDMI/F+2*USB3.0A/F+PD is a video transmission extension cable, the input device has a USB-C interface for mobile phones, tablet computers, laptops, etc., USB-C interface size is small , Support positive and negative plug, PD fast charge, USB3.0 data transmission, HDMI output support up to 4k/1080p video resolution, output device HD monitor, LCD TV, etc.



Feature:

The VL101+VL813+PS176 chip is used.

1. The maximum resolution is 3840X2160P/30HZ (supported by the monitor host). It also supports 1080p/23.98/24/50/59.94/60HZ, 1080i/50/59.94/60HZ, 720p/ 50/59.94/60HZ and so on.

2. Support HDCP2.2.

3.USB3.0A/F supports maximum current of 0.9A and supports up to 5Gbps.

4. Backward compatible with USB2.0/1.1.

5. Complies with USB-C interface specification.

6. Built-in conversion chip, plug and play.



Specification:

Material: ABS

COlor: White

Interface Input: USB-C/M

Interface Output: HDMI/F+2*USB 3.0A/F+PD

Resolution: 4k/1080p

Line length: 180 mm

Chip: VL101+VL813+PS176

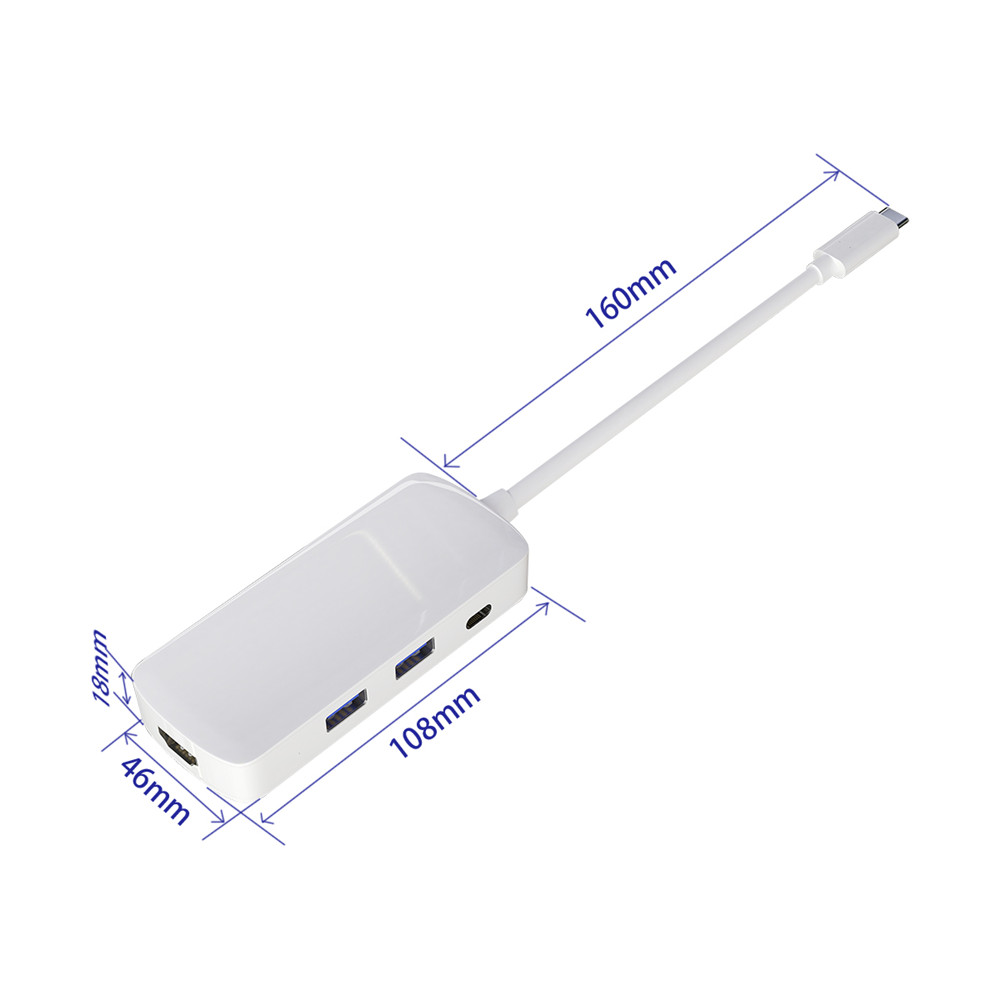

Product Size: 26.5*4.7*1.7cm

Net Weight: 61g

Gross Weight: 79.2g
